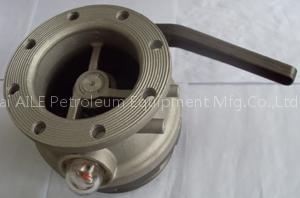

Bottom Loading Valve

1)HYF-U API Bottom Loading Valve is used in tank truck for loading and unloading petrol kind of liquids.

2)It has a handle with two-stage for controlling different flowrateswhen loading or unloading.

3)The light weight and heavy-duty valve is designed andtested to meet API standards, the outer nose end is hard-anodised aluminum alloy and be easily rotated to prevent uneven wear caused by terminal and unloading couplings.

4)The valve is constructed with TTMA standard 4-inoh tanktruck flange and mounting lugs for AILE Air Interlock.

5)Features Benefits:

a. Heat-treated, aluminum alloy body and flange

b. Hard-coated aluminum API adaptor end

c. Stainless steel poppet, shaft, and latch plate

d. H62 brass cam

e. Cast Aluminum Alloy handle

f. Viton seals

g. Meets API RP 1004 specifications

h. TTMA Standards

i. Two-stage fixed aluminum handle gives positive indication of valve position.

j. Sight glass for detecting liquids

k. . Conforms to API RP1004 for total compatibility with API couplers.

l. Lightweight die cast aluminum construction with high-octane fuels and additives.

m. Viton seals are standard for compatibility with high-octane fuels and additives.

n. Hydrodynamic design minimises pressure drop for high flow rates.

o. Stainless steel operating shaft, cam and poppet stem for durability.

p. Top mounting for hose interlock.

6)Materials:

Body: Aluminum alloy

API adaptor end: Hard-coated aluminum

POPPET: Stainless steel

Shaft and latch plate: Stainless steel
