Board Turning and Milling Machine-Insulation Processing Machines

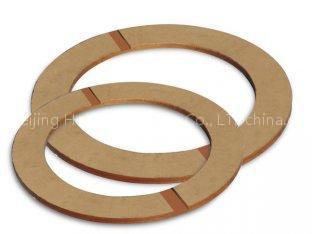

A: Usage: Suitable for making end ring of big type transformer via processing a board. It mainly turns and mills internal and external circle as well can realize milling arc, straight and skew slot. It also has drilling function.B: Equipment components: Worktable spindle drive system: motor, reducer and braker etc.

Feeding and processing system: servo motor, slide, linear guide, ball screw, milling spindle and tool carrier etc. Electrical control system: electrical cabinet, inverter, PLC control system, touch screen etc.C: Specifications: Worktable diameter (end ring diameter): φ2200mm

Turning diameter of workpiece (Max. Diameter of board): φ2650mm

Rotating speed of worktable (controlled by frequency conversion): 1-10r/min

Speed of milling spindle (controlled by frequency conversion): 6000r/min

Moving distance of vertical tool carrier: 200mm

Moving distance of main beam: 500mm

Main motor power: 7.5KW

Milling spindle motor power: 3.0KW

Horizontal servo motor power: 1.5KW

Vertical servo motor power: 1.0KW

Dust collector motor power (optional): 5.5KW
