Listing ID#10214832
CategoryMining Machinery

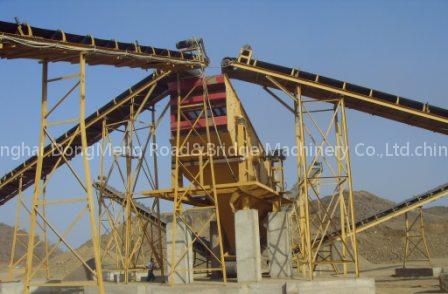

Belt Conveying Machine
Specifications
- Brand
- DongMeng Machinery
- Origin
- Shanghai, China (Mainland)
- Price Term
- FOB
Quick answer
Belt Conveying Machine is a Mining Machinery product. Key specs — Brand: DongMeng Machinery; Origin: Shanghai, China (Mainland); Price Term: FOB.
Product Description
Feature of Belt Conveying Machine
1. Large conveying capacity, long sending distance, and with low noise;
2. Simple structure, easy maintenance, low power consumption;
3. According to different transferring requirement, the transfer system can be one independently or multi-conveyors or combined with other transfer equipments;
4. The belt conveyors can be operated in the circumstance temperature range from -20 °Cto +40°C, and the temperature of transferred material should be lower than 50°C;
5. Can be used as the corollary equipment of stone crusher.
1. Large conveying capacity, long sending distance, and with low noise;
2. Simple structure, easy maintenance, low power consumption;
3. According to different transferring requirement, the transfer system can be one independently or multi-conveyors or combined with other transfer equipments;
4. The belt conveyors can be operated in the circumstance temperature range from -20 °Cto +40°C, and the temperature of transferred material should be lower than 50°C;
5. Can be used as the corollary equipment of stone crusher.
Application of Belt Conveying Machine
This transmission equipment is widely used to transfer sandy and lump material, or packaged material in mining, metallurgical and coal industry, etc.
Technical Parameters of Belt Conveying Machine
| Belt Width (mm) | Belt Length/Power(L/kW) | Transmission Speed (m/s) | Production Capacity (t/h) | ||
| A(L/kW) | 2B(L/kW) | C(L/kW) | |||
| B400 | ≤12/15 | 12-20/2.2-4 | 20-25/3.5-7.5 | 1.3-1.6 | 40-80 |
| B500 | ≤12/3 | 12-20/4-5.5 | 20-30/5.5-7.5 | 1.3-1.6 | 80-190 |
| B650 | ≤12/4 | 12-20/5.5 | 20-30/7.5-11 | 1.3-1.6 | 130-320 |
| B800 | ≤6/4 | 6-15/5.5 | 15-30/7.5-15 | 1.3-1.6 | 280-550 |
| B1000 | ≤10/5.5 | 10-20/7.5-11 | 20-40/11-12 | 1.3-2 | 440-850 |
| B1200 | ≤10/7.5 | 10-20/11 | 20-40/15-30 | 1.3-2 | 660-120 |
