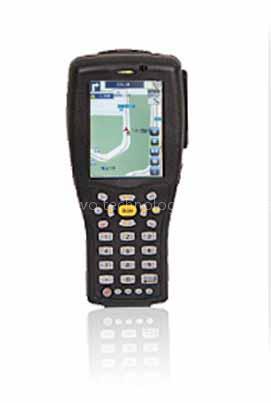

Barcode Scanner

Linear 1D Barcode Scanner Supports UPC-A,UPC-E, EAN-13,/JAN-13, EAN-8/JAN-8, CODE 39, CODE 128, CODABAR/NW7,Interleave 2/5, Industrial 2/5, Matrix 2/5, CODE 93, CODE 11, China Postage, MSI/PLESSEY.

2D CCD Barcode Scanner Supprots QR Code, PDF417, Data Matrix, Micro QR Code, Micro PDF417, Aztec Code Integrated HF RFID Reader Standard SupportedISO-14443A/B, ISO-15693, ISO-18000-3 Operating Frequency13.56MHz Reading Distance0∼10cm Integrated UHF RFID Reader Standard SupportedISO 18000-6A, ISO 18000-6B, ISO 18000-6C, EPC Class 0, EPC Class 1 (GEN2) Operating Frequency 862 MHz-955 MHz Reading Distance10-80cm Passive Tag PERFORMANCE CHARACTERISTICS Data capture options: 1D linear,2D imager, HF/UHF RFID Reader External interfaces RS232, USB 1.1 Memory (Flash/RAM) 128MB RAM; 128MB Flash Operating system (OS) Microsoft Windows CE 5.0 Professional Processor (CPU) Samsung 400MHz processor PHYSICAL CHARACTERISTICS Audio options: Speaker, Microphone, Headset Jack Dimensions: 19.0cmX8.5cmX4.5cm Display: Transflective color 3.5 full VGA with backlight, 320 x 240 Display type: LED backlight, touch screen Keyboard: 26-key Alphanumeric Network connections: Full-speed USB, host or client Weight Standard:400g with battery POWER Main battery Rechargeable Lithium Ion 3.7V, 3200 m Ah Smart Battery REGULATORY SPECIFICATIONS CE CCC FCC Environmental: RoHS-compliant USER ENVIRONMENT Drop specification: 1.2m drop to concrete Environmental sealing IP54 Humidity 95% non-condensing Operating temperature: -10°C to 50°C Storage temperature -20°C to 60°C WIRELESS DATA COMMUNICATIONS WLAN: 802.11b/g Security: supports 802.1x and CISCO CCX2/3 Antenna: Internal WAN GSM/GPRS Class 10, GSM27.10 Multiplex Antenna: Internal/External Bluetooth: Class1.1 Antenna: Internal GPS Satellite Receiver: 20 Channels Accuracy: 10m Antenna: Internal
