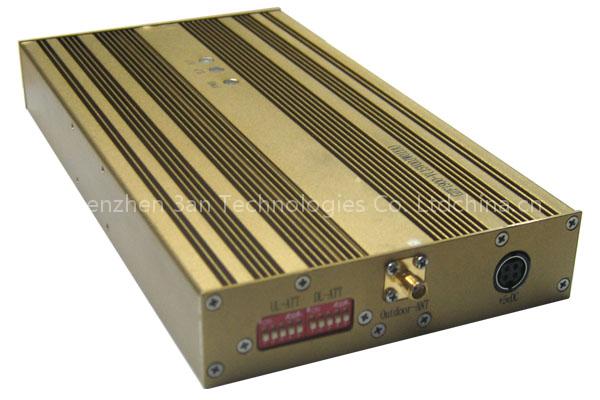

Band selective repeater is a Telecommunications product. Key specs — Origin: china; Price Term: FOB.
Product Description
Electrical Specifications Type : SR-C70/17 SR-G70/17 SR-D65/17 SR-P65/17 Frequency range: UL: 825-835 DL: 870-880 / UL: 890-915 DL: 935-960 / UL: 1710-1785 DL: 1805-1880 / UL: 1850-1910 DL: 1930-1990 Band Selective: 5MHz / 10MHz / 25MHz / 75MHz Gain: 70±3 dB / 70±3 dB / 65±3 Db / 65±3 dB Output
Power: DL: 17d Bm; UL: 10d Bm / DL: 17d Bm; UL: 10d Bm IMD 3: ≤-45d Bc VSWR: ≤2.0 Noise Figure: ≤6dB Ripple in band: ≤8dB Time Delay: ≤1.5μs 1GHz-12.75GHz:≤-30d Bm/30k Hz LED: Power supply：normal (green)；UL：high Power(Red)；DL: high Power (Orange) / Po-10dB (green). Connector: N-F Female I/O impedance: 50Ω No-Condition
Power supply: Input AC：100V-240V Mechanical Specifications
Dimensions: 220×120×30 / 290×250×70(mm)
Weight: About 1.5 kg
Color: Blue or Black Other: Power supply adapter, Specification Optional: Yagi Antenna, Indoor Antenna, Splitter, Cable and Connector etc
