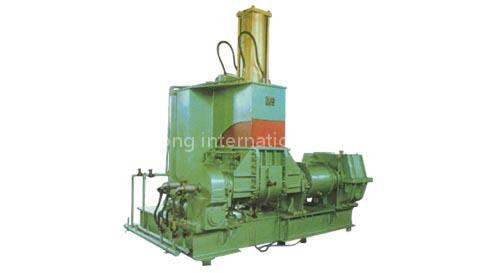

Banbury Intensive Kneader

Type		X(S)N-35×30	X(S)N-55×30	X(S)N-75×30
Total volume of mixing chamber	L	75	125	175
Working volume of mixing chamber	L	35	55	75
Driving motor power	KW	55	75	110
Tilting moter power	KW	2.2	2.2	2.2
Tilting angle	　	140°	140°	140°
Rotational speed of rotor (front/back)	r/min	30/24.5	30/24.5	30/24.5
Pressure of compressed air	Mpa	0.6～0.8	0.6～0.8	0.6～0.8
Pressure of cooling water	Mpa	0.2～0.4	0.2～0.4	0.2～0.4
Pressure of heating Steam	Mpa	0.5～0.8	0.5～0.8	0.5～0.8
Overall dimension	mm	3200×1900×2945	3300×1900×2900	3760×2143×3135
Weight	kg	6500	7800	10200

It can be applied in the separate or mixing refining of raw glue, mix glue, rubber, plastic and other raw materials to manufacture various rubber products such as EVA frothing soles, rubber soles, TPR soles, rubber roller wheels, sponge, tyres, balls, rubber belts, capsules, grease seals, shockproof rubber, adhesive tapes,ink electric products and rubber products for vehicle.
