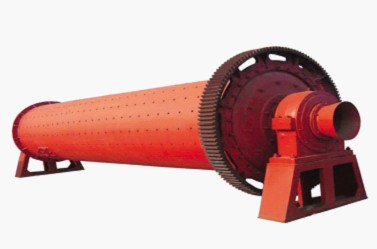

Ball Mill

Ball mills are widely used for further processing after primary crushing in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

Comparing with Raymond mill, ball mill is available in both wet grinding and dry grinding for further processing. 2. Working principal: This machine is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers.

The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material.

After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.
