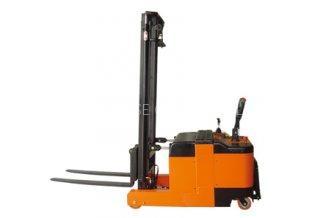

Balanced weight Stacker FX series
Specifications
- Origin
- China (Mainland)
- Price Term
- FOB
Balanced weight Stacker FX series is a Other Plastic & Rubber Machinery product. Key specs — Origin: China (Mainland); Price Term: FOB.
Product Description
Heavy-duty mast can been adjusted to suitable degree.
Forged fork for easy access.
Powerful drive and power unit made in Europe.
Top quality electronic control system from Curtis.
Conforms to EN 1757-1:2001, EN1726.
Model | FX0625 | FX0733 | FX1025 | |
Capacity | (kg) | 600 | 750 | 1000 |
Max. Fork Height | (mm) | 2500 | 3300 | 2500 |
Lowered Lifting Height | (mm) | 35 | ||
Free Lifting Height | (mm) | 140 | ||
Load Centre | (mm) | 400 | ||
Mast Tilt Angle | -7°～ 1° | |||
Fork Length | (mm) | 1000 | 1000 | 800 |
Front Wheel | (mm) | Ø200×80 | ||
Driver Wheel | 1.2KW/24V, Ø250×80mm | |||
Power Pack　(Walking) | (KW/V) | 1.2/24 | ||
Power Pack　(Lifting) | (KW/V) | 2.0/24 | ||
Traction Battery/Charger | 240Ah/24V, 210kg; 30A/24V | |||
Net Weight | (kg) | 1515 | ||
Dimension | X (mm) | 920 | ||
X2 (mm) | 245 | |||
Y (mm) | 1130 | |||
L2 (mm) | 1485 | |||
L (mm) | 2295 | |||
M (mm) | 220-540 | |||
N (mm) | 100 | |||
h1 (mm) | 1860 | 2260 | 1860 | |
h3 (mm) | 2500 | 3300 | 2500 | |
h4 (mm) | 3275 | 4075 | 3275 | |
Wa (mm) | 1375 | |||
