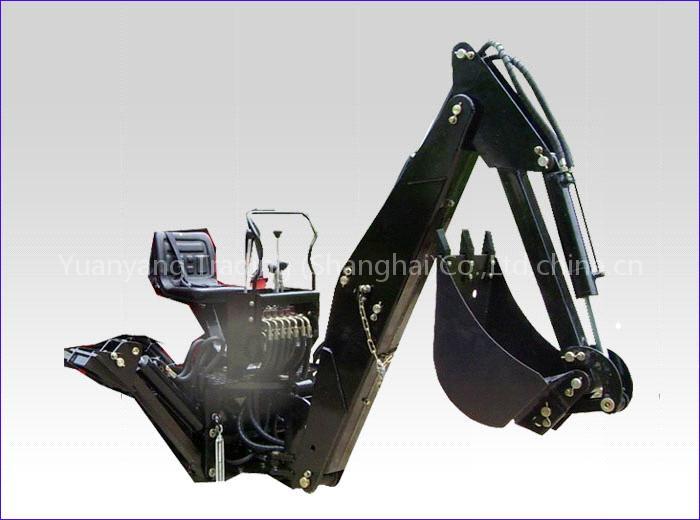

Back Hole is a Agriculture product. Key specs — Origin: China (Mainland).
Product Description
Model | LW-6 | LW-7 | LW-8 | LW-9 | LW-10 |
Horsepower Range | 16-35 | 25-45 | 30-75 | 40-100 | 70-125 |
Overall Size | 1550x1480x2130 | 2000x1860x2500 | 2140x1860x2800 | 2300x1750x2800 | 2400x1900x3000 |
Max. digging depth(mm) | 1850 | 2150 | 2640 | 2900 | 3000 |
Max. digging radius(mm) | 2800 | 3360 | 3930 | 3977 | 3886 |
Max. digging height(mm) | 2500 | 3400 | 3510 | 3900 | 4000 |
Clischarging height(mm) | 1400 | 1760 | 2000 | 2362 | 2337 |
Max. digging depth(2ft) Flat bottom(mm) | 1600 | 2000 | 2500 | 2760 | 2800 |
Swing Angle(o) | 140 | 140 | 140 | 160 | 160 |
Bucket Rotation(o) | 160 | 160 | 160 | 150 | 150 |
Operating Pressure | 16MPa | 16MPa | 16MPa | 16MPa | 16MPa |
Dipperstick Digging Force(kg) | 790 | 950 | 1000 | 1270 | 1720 |
Shipping Weight(approx)kg | 470 | 540 | 600 | 820 | 910 |
