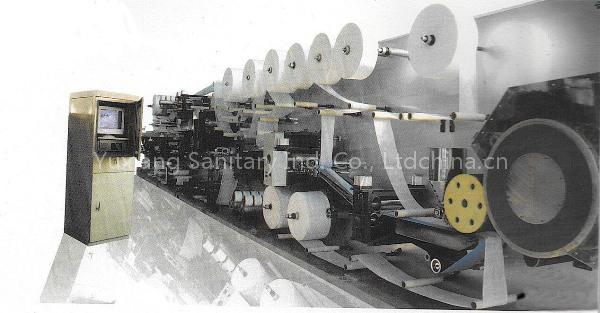

Baby Diaper Machine

Function & Assemble Parts
* Frontal tape, side sticker and elastic waistline are added on the machine.
* Teeth-like crusher can take treated or untreated pulp with adjustable amount of SAP.
* Stereo-protection is molding on the machine. Stereo U type is adjustable.
* After molding, products with double wings folding are three-folded into square type and arranged vertically and output in line.
* It can produce four specifications (L, M, S, XL) of products by exchanging cutting tool or simple regulation.

* It can produce economical or high-grade products with elastic waistline and stereo-protection.
Structure & Character:
* Positioning and molding procedure of products are equipped with differential device to conduct adjustment without stopping machine.
* Material axle is in fast expanding with convenient material stuffing and accurate positioning.
* During operation, jumbo roil takes vacuum absorption to guarantee the stability of material tension.
* Driving system consists of gearwheel box, universal couplings and arc gear synchronous belt with good synchronization and high mechanical efficiency.
* Driving components are installed on the backboard of equipment to protect operation against shake and facilitate the adjustment and maintenance.
* Web wheel in large diameter lay out the pulp to keep even thickness of cotton core under high-speed operation.
* Board support working part, which facilitates checking the quality of products, operating and adjusting.
Main Technical Parameters:
* Machine power: 160KW(380V 50Hz) (include glue applicators.)
* Straddle Production speed: 200~250 PCS/min
* Overall size of equipment (L x W x H m): 16 x 2.4 x 3.1
* Weight of equipment: about 25 T
* Designed production speed: 300 PCS/min
