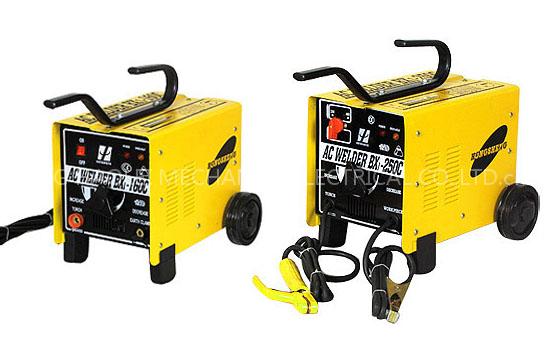

Name: BX1-C AC arc welding machine
Brand: HAOLEI

Description :1. Single-phase ,portable, fan-cooled , movable cable ,thermostatic protection.
2.Transformer structure, stepless current adjustment, Alu coil, suit for various electrodes welding .
3.Complete accessories: electrode holder , earth clamp, welding cable , brush/hammer, protective mask, color box .

Model (Technical Parameter)	Unit	BX1-130C1	BX1-160C1	BX1-180C1	BX1-200C1	BX1-250C1
Rated Input Voltage	V	230	230/400	230/400	230/400	230/400
Frequency	HZ	50	50	50	50	50
No-load Voltage	V	48	48	48	48	48
Current Range	A	55-130	55-160	60-180	60-200	65-250
Rated Duty Cycle	%	10	10	10	10	10
Input Capacity	KW	6.2	8.1	9.5	11	13
Protection Class	IP	21	21	21	21	21
Insulation Class		H	H	H	H	H
Uasble Electrodes	M	2-3.2	2-4	2-4	2-4	2.5-5
Weight	KG	13.5	14.5	15.5	17.5	20.5
Dimensions	MM	470X275X300	470X275X300	470X275X300	470X275X300	470X275X300

Model (Technical Parameter)	Unit	BX1-130C2	BX1-160C2	BX1-180C2	BX1-200C2	BX1-250C2
Rated Input Voltage	V	230	230/400	230/400	230/400	230/400
Frequency	HZ	50	50	50	50	50
No-load Voltage	V	48	48	48	48	48
Current Range	A	55-130	55-160	60-180	60-200	65-250
Rated Duty Cycle	%	10	10	10	10	10
Input Capacity	KW	6.2	8.1	9.5	11	13
Protection Class	IP	21	21	21	21	21
Insulation Class		H	H	H	H	H
Uasble Electrodes	M	2-3.2	2-4	2-4	2-4	2.5-5
Weight	KG	13.5	14.5	15.5	17.5	20.5
Dimensions	MM	470X275X300	470X275X300	470X275X300	470X275X300	470X275X300
