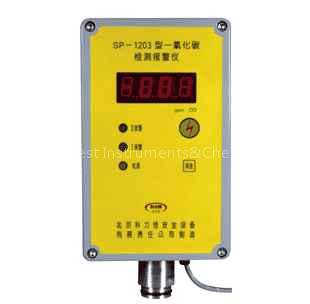

BK10-SP-1203 Stationary CO Gas Detecting Alarm

Feature
This product is a stationary instrument integrating detector and secondary instrument with digital display, sound and light alarm, alarm output (output AC220V, direct-driven ventilating fan) and
other functions
Adopting advanced electrochemical sensor with high accuracy, strong anti-interference and long life. Especially suitable for staff shifting room, office in metallurgy, chemical plant and other industries where CO may occur but with no need of explosion-proof

After alarming, the instrument can drive fan or other alarm device through contact to ensure the

indoor operators safety

This product is non-explosion-proof design, don't be used in danger area.



Technical specification:

Test gas CO in the air Measuring type Diffusion Measuring range 0~2000ppm Temperature -10~+50 Humidity: ≤95% Pressure 86~106kPa Measurement accuracy ≤±5% Alarm precision ≤±5% Power 220VAC/3W, 50Hz Sensor life ≥24months Display 3 1/2 LED digital display Alarm value 50ppm, 300ppm (two-level adjustable) Control output 220VAC for driving below 100w fans and other electric equipment Response time (T90) ≤30s Weight 1.8kg Dimensions 162×90×320 (mm) CMC code No 00000301 midwest-p-brendamsn Call: 008613901136645
