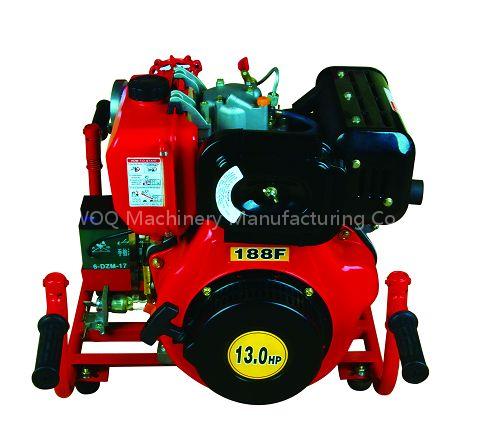

BJ -10B Portable DIESEL Fire Pump

JBQ5.5/10 Portable Fire Pump produced by 188FB diesel engine and the single-lev . It has features of compact structure, start convenient, fast water, low fuel consumption, light weight and reliable, so that is more suitable for using in the narrow roads.

It is the ideal equipment for fire extinguishing used in fire brigade, professional fire brigade, forest fire brigade, towns, rural areas, the mining industry and obligation fire brigade. Technical parameters Appearance dimension L×W×H: 565×580×560mm;

Pump Intake Sop Caliber: Φ65mm;

Pump outlet Water Exceeding Caliger: Φ65mm;

Device weigh Dry Weight: ≤77kg;

Maximum output power Maxinmum Torque: 13HP/3600r/min;

Starting way Way Of Starting : electric starter and handle starter;

Rated flow pump At Rated Pressure: 780L/min/0.45Mpa;

Pump priming time Priming Time : ≤20s;

Maximum suction depth

Sucation Head Max: 7m;

Pump lift

Yang Cheng :65m
