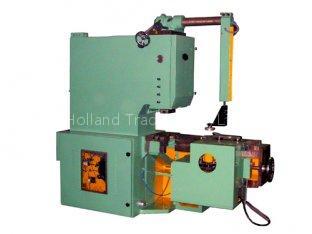

BJD91K1 series CNC high speed notching machines
Specifications
- Brand
- 1997
- Origin
- China (Mainland)
- Price Term
- FOB
BJD91K1 series CNC high speed notching machines is a Pipe Fittings product. Key specs — Brand: 1997; Origin: China (Mainland); Price Term: FOB.
Product Description
Name and model | BJD91K1-10 | BJD91K1-16 |
Nominal pressure | 100KN | 160KN |
Stroke of slide | 25mm | 40mm |
Number of strokes per min | 180-550minâ€Â¹ | 180-550minâ€Â¹ |
Max. Shut height | 210mm | 220mm |
Adjustment of shut height | 25mm | 25mm |
Throat depth | 260mm | 350mm |
Distance between centre line of stem hole and center line of index spindle | 35~500mm | 135~650mm |
Number of slot | 9-999 | 9-999 |
Diameter of lamination | Φ70-Φ1200mm | Φ300-Φ1500mm |
Max. Punching thickness | 1.5mm | 2mm |
Work table size(FB×LR) | 220×420mm | 250×450mm |
Slide bottom size(FB×LR) | 130×170mm | 140×210mm |
Power | 4.0 Kw | 5.5 Kw |
Dimension(L×W×H) | 2730×1190×2180 mm | 3154×1150×2260 mm |
Weight | ~4000 Kg | ~4700 Kg |
