BIKE ALARM LOCK LK613

Item No.: LK613

Patent: 200420003535.6

Name : alarm bike lock

Can be used on:

electric bike ,Door, car steering wheel, bike, window, toolbox,truck, trailer, boat,shed, side gate, container,public storage unit,cart,garden machinery, locker, lockroom , etc

Lock Features:

105-110 db alarm sound

Auto-alarming system & locking system

Can be used alarmed or unalarmed states

Automatic alarm reset

Shake,shock,move or vibrate sensor

Resistant corrosion , Resistant bad weather, Resistant physical destory, Waterproof .

Material:aluminium alloy body

Hot processed hardened steel shackle(anti cut & saw), Shackle diameter : 16 mm

6 pcs button batteries (digital watch style), battery life:4-6months

Specification(cm): 20.5(height) X 10(width) X 3.3(depth)

2pcs brass security keys

6pcs AG13(4.5v) button batteries.(extra a set of batteries is available)

Package: blister with card

Carton size: 35*25*28.5cm (20pcs/ctn, G.W./N.W.: 15/14KGS)

FOB price :$4.3-4.5/pcs ,

MOQ :500PCS

Payment term : T/T (30% deposit and 70% before shippment)sample(western union)

20ft:25000pcs

LK613USAGE DIRECTION

Patent: 200420003535.6

lock and alarm are united into a mainly used for bike .electric bike and etc.

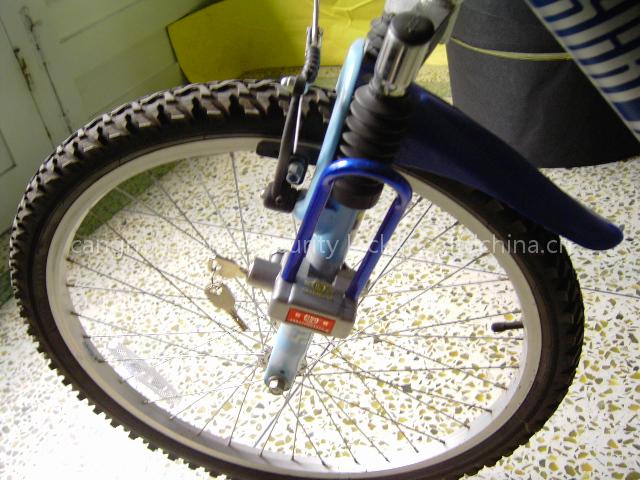

2. Reference the installation pictures ,please use screw to fix the lock body and the clamp on the damping pole .

3. When you want to lock it and give an alarm ,first, please use the key to open the lock and pull out the lock pole ,make the elbow of the lock pole down , then put into the lock hole ,you will hear the sound “DI’’ which means it is coming into the alarm situation ,after 15 seconds ,when the vehcile or lock are vibrated again,it will give an alarm and keep alarm with serial movement or vibration. Each alarm will last 10 seconds.

4.If it won’t give an alarm ,please make the elbow upward,that is OK.

5.when cycling ,please make the lock pole insert into the two extra lock holes on the lock body ,of course it need the key to help you .

6. When you hear the sound “Ge. Ge. Ge….”constant voice,that means the battery will be worn out,you need to replace the battery.

7.When replacing the battery ,you need to pull out the lock pole, then spin out the two screws inside the lock hole.After that you can take away the cover board and replace the battery, but be sure the anode and cathode.

8.Warning:in order to replace battery easily later on ,please keep this usage direction.
