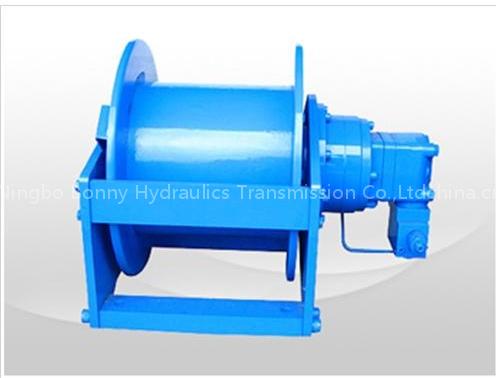

BG Series hydraulic winch

BG Series Hydraulic Winch for crane, drilling rig machine, piling machine Model BG Series winch Pull Force 500—5700kgs Rope Speed 0- 63m/min Application Pick n carry crane, mobile crane, drill machine, piling machine. overhead working truck, lorry mounted crane, mirror crane, ship equipments and so on BG series hoisting winches are widely used in overhead working truck, lorry mounted crane, drill machine, mirror crane, ship equipments and so on.

It is the best choice for those situations that requires the narrow space and light weight.

Special Features diams; Floating type planetary gearbox, smooth operation and reasonable structure. diams; Normally closed friction type brake, high braking torque, safe and reliable operating. diams; Small volume, compact structure and high transmission efficiency. diams; Long life Danfoss hydraulic orbit motor diams; Mounting frame is available on request. diams; Balance valve, shuttle valve, limit switch and other accessories are also available on request.

Model 1st layer top layer Rope Speed Rope diam.

Capacity of Rope Working Pressure Max Supply Oil Flow nbsp; kgf kgf m/min mm m Mpa L/min nbsp;&nbsp BG500 500 380 63 6 67 14 40&nbsp BG800 800 680 54 8 53 14 50&nbsp BG1100 1100 870 41 8 53 14 50&nbsp BG1300 1300 1000 45 9 48 14 55&nbsp BG1500 1500 1200 42 10 60 21 55&nbsp BG2000 2000 1600 35 10 60 21 55&nbsp BG2500 2500 2000 52 12 52 21 100&nbsp BG2600 2600 2000 54 12 76 21 100&nbsp BG3200 3200 2500 44 14 66 21 100&nbsp BG3600 3600 2800 40 14 66 21 100&nbsp BG4500 4500 3500 36 15 89 21 110&nbsp BG5700 5700 4500 26 16 102 21 120&nbsp Meanwhile, we can also design and manufacture hydraulic winches according to your requirements.
