Listing ID#10041359

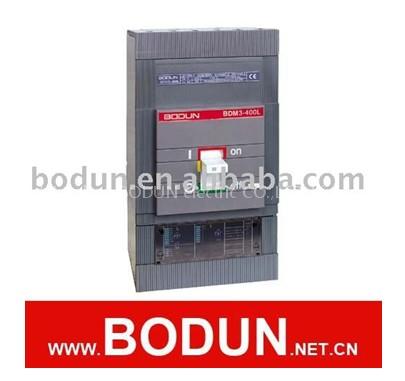

ModelBDM3 SILVER Moulded Case Circuit Breaker
CategoryCircuit Breakers
BDM3 SILVER Moulded Case Circuit Breaker
Specifications
- Origin
- Zhejiang China
- Price Term
- FOB
Quick answer
BDM3 SILVER Moulded Case Circuit Breaker is a Circuit Breakers product. Key specs — Origin: Zhejiang China; Price Term: FOB.
Product Description
Detailed Product Description
1,S Series
2,Upto 1600A
3,1,2,3,4Pole.
4,Reasonable Price.
BDM3 moulded case circuit breaker is suitable for circuit AC 50Hz/60Hz, rated voltage up to AC have already achieived the CE Certificate,KEMA Certificate and it complies with standard of IEC60947-2.
| Application |
| BDS moulded case circuit breaker is suitable for circuit AC 50Hz/60Hz, rated voltage up to AC 660V, Rated operating current to features normal structure, reliable performance, complete accessories & high breaking capacity, used for power distribution and protecting the circuit and electrical equipment against overload and short circuit. It complies with standard of IEC60947-2. |
| Tripping Characteristics |
| Rated current of release (A) | Thermodynamic release (ambient temp+40) | Operational current of magnetic release (A) | |
| 1.05In (cold state) inoperative time (h) | 1.30In (heat state) inoperative time (h) | ||
| In≤63 | ≥1 | < 1 | 10-50In±20% |
| 63 < In≤250 | ≥2 | < 2 | 10In±20% |
| 25 < In≤800 | ≥2 | < 2 | 5-10In±20% |
| Type | Rated Current(A) | Number of Poles | Rated Insulation Voltage (V) | Rated Operating Voltage (V) | Ultimate Short Circuit Breaking Capacity(KA) | Servies Short Circuit Breaking Capacity (KA) | operation performance (Endurance) | |
| AC-380vAC-(400) 600V DC-(690) 250 | AC- AC-380v 600V (400) (690) | load | unload | |||||
| BDM3-125E | 12.5,16,20, 25,32,40, 50,63,80, 100,125 | 1P, 2P, 3P, 4P | 660 | 380 660 | 15 - - | 7.5 - | 3000 | 7000 |
| BDM3-125S | 25 - 20 | 16 - | ||||||
| BDM3-160S | 16,20,32, 40,50,63, 80,100,125, 160 | 35 8 20 | 18 - | 4000 | 6000 | |||
| BDM3-160H | 50 10 40 | 25 - | ||||||
| BDM3-250S | 100,125,160, 180,200,225, 250 | 35 10 40 | 18 - | 2000 | 6000 | |||
| BDM3-250M | 50 16 40 | 30 - | ||||||
| BDM3-250H | 65 18 40 | 48 - | ||||||
| BDM3-400S | 200,225,250, 315,350,400 | 35 16 40 | 18 - | 1000 | 4000 | |||
| BDM3-400M | 50 20 40 | 30 - | ||||||
| BDM3-400H | 65 25 40 | 48 - | ||||||
| BDM3-630S | 400, 500, 630 | 50 20 40 | 30 - | 1000 | 4000 | |||
| BDM3-630M | 65 25 40 | 48 - | ||||||
| BDM3-630H | 80 30 40 | 60 - | ||||||
| BDM3-800S | 500, 630, 700, 800 | 50 20 40 | 30 - | 1000 | 4000 | |||
| BDM3-800M | 65 25 40 | 48 - | ||||||
| BDM3-800H | 80 30 40 | 60 - | ||||||
