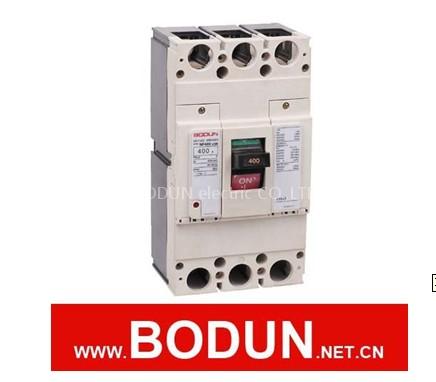

BDM11 Moulded Case Circuit Breaker ( MCCB )
Specifications
- Origin
- Zhejiang China
- Price Term
- FOB
BDM11 Moulded Case Circuit Breaker ( MCCB ) is a Circuit Breakers product. Key specs — Origin: Zhejiang China; Price Term: FOB.
Product Description
Detailed Product Description
1,2,3,4Pole.
2,3A up to 800A
3,NF-CS,NF-SS,NF-CP,NF-CW
4,IEC60898.
BDM11 MCCB ( MOULDED CASE CIRCUIT BREAKER )
Application
BDM11 series circuit breaker is features of reliable working out and steady performance,
reasonable structure, beautiful appearance and small volume etc. It can be used in the
circuit of 50Hz or 60Hz, rated voltage up to 600V. It is used to distribute electric energy in
distribution network and be overload or short circuit protection power equipment, and also
can be used in transformation of circuit unfrequency under the normal conditions.
Type | Pole | Rated Current(A) | Utilization Category | Rated breaking capacity(KA) | |||||
240V | 380V | 415V | 500V | 600V | 600V | ||||
BDM11 | 3 | 5,10,1520,30,40,50 | A | 5/2 | 5/2 | 2.5/1 | 2.5/1 | - | - |
BDM11 | 3 | 60 | 5/2 | 5/2 | 2.5/1 | 2.5/1 | - | - | |
BDM11 | 3 | 60,75,100 | 25/13 | 10/5 | 10/5 | 7/4 | - | - | |
BDM11 | 3 | 125,150,175,200,225,250 | 30/15 | 18/9 | 15/8 | 10/15 | - | - | |
BDM11 | 3 | 250,300,350,400 | 85/60 | 50/35 | 25/20 | 35/25 | 25/18 | 15/10 | |
BDM11 | 3 | 500,600,630 | 85/60 | 50/35 | 50/30 | 35/25 | 25/18 | 15/10 | |
BDM11 | 3 | 600,700,800 | 85/60 | 50/35 | 50/30 | 35/25 | 25/18 | 15/10 | |
BDM11 | 3 | 10,20,30,40,50,63 | 5/5 | 5/2.5 | 2.5/1.5 | 2.5/1.0 | - | - | |
BDM11 | 3 | 60,75,100,125 | 50/42 | 30/20 | 7.5/5 | 15/10 | 10/5 | 5/2.5 | |
BDM11 | 3 | 125,150,175,200,225,250 | 50/42 | 30/22 | 25/15 | 18/15 | 15/1 | 5/2.5 | |
BDM11 | 3 | 250,300,350,400 | 85/60 | 50/35 | 25/20 | 35/25 | 25/18 | 15/10 | |
BDM11 | 3 | 500,600,630 | 85/60 | 50/35 | 50/30 | 35/25 | 25/18 | 15/10 | |
BDM11 | 3 | 600,700,800 | 85/60 | 50/35 | 50/30 | 35/25 | 25/18 | 15/10 | |
