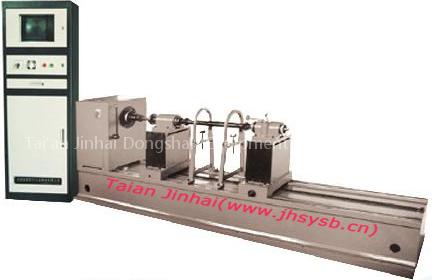

BDB-100A balancing machine

This series balancing machine is an ideal euipment for a car to balance and check the drive shaft. Just replace the installation of the workpiece fixture, you can make a variety of automotive drive shaft of the balancing correction, Dual-speed motor (inverter) drive, handle fast-brake brakes, double-sided balance, swing frame adopts semi-rigid supporting structure, measurement systems use RYW-2001 balance measurement software, with industrial control computer and control cabinet. System testing of high precision, reliable, easy maintenance, more advanced than other test systems. Adopt automatic tracking filter circuit and system computer that manufactured by abroad advanced integrated circuits to maximize the degree of integration of the electrical appliances, modular design and high-integrated circuit is a distinctive feature of the aircraft. Software interface designs friendly, you can store more than 100 rotor parameters, measurement is simple, you can only enter the type of numbers of the rotor than can enter into the measurement procedure, the screen displays the size of the unbalance and phase angle and real-time speed, rotor number, character prompt steps, real-time status display signal processing / de-emphasis status etc

　MODEL	BDB-50A	BDB-100(A)	BDB-200A
of workpiece(kg)	50 kg	100 kg	200Kg
Max.length of workpiece(mm)	1500 mm	2000 cm	2400mm
Balancing speed min(r/min)	1200-3600rpm	900-3600rpm	900-3600rpm
Min.achievableresidualun balance( width="148"> ≤5gcm/kg	≤8gcm/kg	≤20gcm
Unbalance reduction ration(%)	≥85%	≥85%	≥85%
Drive Power	2/2.4 kw	2/2.4(A: 2.2)	4 kw
Speed Mode	Dual-speed Motor	Dual-speed Motor（A-Frequency Control）	Frequency conversion
