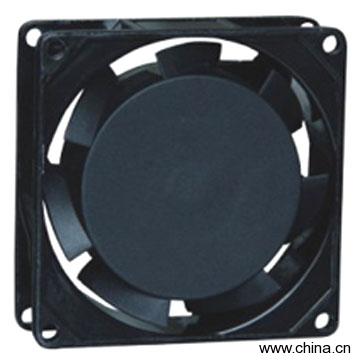

Axial AC Fan is a Fans product. Key specs — Origin: China (Mainland).
Product Description
Model No.:TA8025 Product
Origin:China Brand
Name:
Price Terms:FOB, CFR
Payment Terms:T/T, L/C
Certification:UL, CE Description:
Specifications:1)
Model: TA80252)
Dimensions: 80 x 80 x 25mm3)
Voltage: 110V, 220V, 380V4) Current: 0.14A5)
Power: 15W6)
Speed: 2,300rpm7) Air flow: 21cfm8) Pressure: 0.149) Noise: 22dB10)
Weight: 225g
Features:1) Electric motor: shaded pole type AC electric motor design2) Frame: high quality aluminum alloy outside frame 3) Anti-corrosive and moisture proof structure4) Impeller: UL-0 70% PBT+30FRP5) Bearing: self lubricating bearing and ball bearing 6) Insulation: class B7) Insulation impedance: the case adds 500V DC to the coils, insulation impedance100M&Omaga; higher 8) Dielectric strength: 0.5m Ah, 1500V/AC min.9) Safety protection: impedance protection 10) Operating temperature: -10 - +70°C11) Storage temperature: -40 - +70°C
