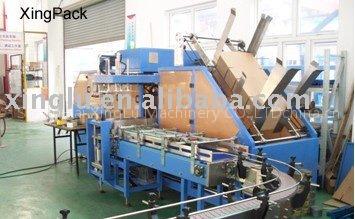

Automatic beverage packaging machine Packaging equipment

The automatic beverage packing machine is used for bottles to be packed in carton. It can finish all packing process,including carton formed,put the bottles into carton and carton sealing. I. Introduction: Automatic WrapAround Packing Machine (carton packing machine) can finish the process of the cardboard sucking, product Packing and carton forming.

Compare with the manual carton erecting, product loading and sealing, this machine make the process all-in-one . And the finish carton is sealed by the hot melt adhesive tape , it is more healthy and beautiful compared with the normal tape sealed carton.

Suitable for being combine with beer, wine,cigarrette bar, soap, instant noodle and canned drink production line, in order to complete the last carton packing process. II. Application: 50-1000ml bottle. 1000-5000ml bottle. The machine also can be made according to customers' request III. Technical Parameter: Capacity Max 15 carton/min

Package Size (L×W×H) Min: 200x300x100mm

Max: 350x450x300mm

Compressed air 0.4-0.6MPa, 500L/min

Melting heating temperature 170oC±5oC

Hot Melt adhesive fixing time 1.5s-2.5s

Dimension 6000x2255x1900mm

Weight 2200kg

Power 8kw

Power Supply 220V,380V/50Hz,60Hz

IV. Note: Should be custom-made according to your specific requirements, pls follow us the products you wanna pack. And your visiting is welcome at any time.
