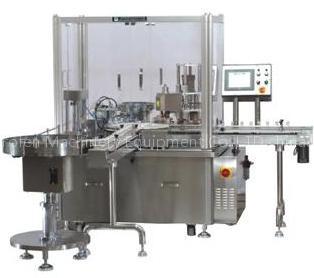

Automatic Vial Filling,Plugging and Sealing Machine

Automatic Vial Filling,Plugging and Sealing Machine Features 1. This machine is suitable for small volume liguid filling, plugging and capping, like vial anti-biotic, eye drops etc. 2. AISI 316L or high-precision ceramic rotating piston pumps are driven with servo motors. Only set-up on touch screen for automatic accurate correction.

Each piston. pump can be turned without any tool. 3. All contact parts are of AISI 316L and medical silicon rubber. 4. Plugging and capping with mechanical devices, more stable and reliable. 5. 7.7-inch color touch screen, real time display, multi languages. 6. Changeable capping heads for different cap. 7.

Optional nitrogen protection and laminar. &nbsp Main Technical Specification

Filling Volume 0.5-3ml, 3-10ml, 10-20ml, 20-50ml

Number of Filling Head 2 Sets

Capacity 2,400-3,600 Bottles/Hour

Compressed Air 6Kg/cm2, 0.3m3/min

Nitrogen 1Kg/cm2, 0.1m3/min 0.25 µ

Supply Power 3P 380V/220V 50-60 HZ 3,500W

Dimension 2,000*2,500*1,700 mm(L*W*H)

Net Weight 650Kg
