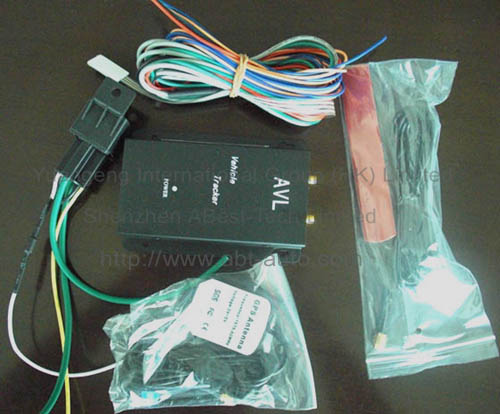

Automatic Vehicle Location System(AVL-011)

Model #: AVL-011

nbsp Advantages We have our own server platform & client software, all of which are developed by ourselves, and it's free for customers to enjoy the service ;very convenient to track the car/vehicle/truck; can cut off power/fuel supply of the car/vehicle/truck remotely if necessary; It can be invisible if it's installed at a covert place, so it's safe; SOS emergence help can make the owner safe; If dangerous (robbed), can monitor the voice around the car/vehicle/truck, and others there will not know that the voice is being monitored (optional);can match with origin car alarm system;Backup battery can make the tracker still work even power off Features Anti-theft: automatically send SMS to your phone in case of theftVoice monitoring: monitor the voice around the car via telephoneCut off the car power/fuel supply by SMS, to stop the carLock/unlock the car door by first phone owner Inquire the car's location, speed & direction via SMS Track the car by SMS or by software(The software is optional)Flexible design, the system could work without the third party.

User can also set up a management center to supervise & control many vehicles at the same time (optional) maximum speed(overspeed alarm), or the car oversteps the certain territory(=Geo-fencing), the system will send SMS to warn the user.

(Optional function of the management software) 1) SOS alarm (optional) 2) Over speed alarm 3) When the vehicle is at arm status, it will alarm when it moves over 100m 4) Power-cut alarm & (low power alarm Specifications GPS definition: 5~15meters DATA communications mode: GSM/GPRS Operation Temperature: -20 ~ +70 degree Celsius Operation humidity: 20% ~ 90% Battery voltage: DC 12V DATA interval time: 9~99s Power consumption: <=60mA The contents of data: Time, car status, latitude and longitude, speed, course, GSM station code.

The working time of Backup battery: 12Hours Accessories

GPS antenna

GSM antenna

Power Cable

SOS button

Relay

Packing Size of main unit: 12 * 8 * 2cm Weight of main unit: 0.125Kg Size of gift box: 20 * 15 * 4cm Gross weight of gift box: 0.445Kg Size of carton a) 62 * 41.5 * 30cm, 56pcs/carton b) 31 * 41.5 * 30cm, 28pcs/carton c) 32 * 21 * 30cm, 14pcs/carton nbsp;
