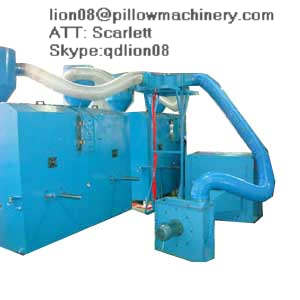

Automatic Toy Stuffing Machine

Automatic Toy Stuffing Machine

Specification Item no.: QL180-TS-2

Equipment: Fiber opener 1pcs; Fan 1pcs; double slot stuffer 2sets; Control screen 1pcs.

Dimension: 4600*4800*2400mm

Voltage: 380v 50Hz 3phase

Power: 12.85kw

Stuffing pipe diameter: 1.2-6cm * 4sets

Stuffing slot: 4pcs

Labor need: 5 labors

Air pressure: 0.6-0.8Mpa, 1.2kg/ m3

Control system: PLC controlling

Capacity: approx. 300kg/h

Weight: 1500kg

Description

1. Qingdao LION Automatic toy stuffing machine line is the highest technical for toy producing in China that the whole line is controlled by computerized system.

2. It can be handled by only 5 operators producing about 300kg/h only for toy stuffing.

3. The material application can be conjugated hollow silicones polyester fiber that shorter than 100mm length, the best material choice for bear producing is 32mm length and other spec. is the same.

4. Different requirements can be considered to work on our equipment to be suitable to the customer.

5. Good dynamical balance processing assures the machine running without shaking and noise.

6. Our machine main structures are made by computerized laser cutting machine which is very stable quality to the machine.

7. The electricity key parts are adopted by the most famous world brand such like Siemens, Omron which will provide you the service in the local department.

8. Please contact us to get the operation video for a reference.
