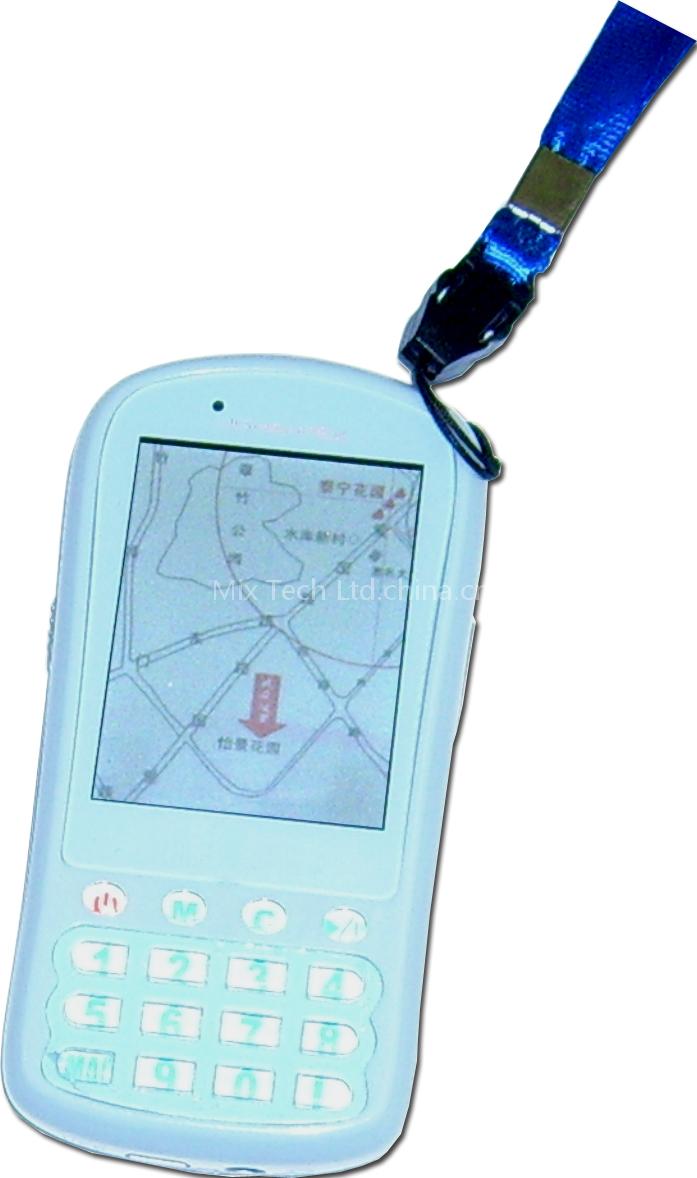

Automatic Tour Guide System

The Automatic Tour Guide System (ATGS) system consists of two components. The first is a set of signal transmitters which were pre-installed at different locations of a museum or a scenic spot. The second is a handset device carried by a visitor.

The client device can determine the position of the visitor by detecting the signal emitted from the pre-installed transmitters at different locations. Accordingly, it will automatically deliver the corresponding audio/video/picture contents to the visitor.

Alternatively, the visitor can also manually activate the playing of contents by pushing the number keys on the handset. The ATGS01 system is the latest AGS product of our corporation. It is a great thing for self-guided visitors when they visit a big museum or scenic spot.

The ATGS01 system can play rich media contents of different languages so that visitors of different native languages can be guided during a tour at the same time. The ATGS01 system has the following features: Limitless amount of handset device for each touring goup. True color LCD display for graphics, maps, videos.

Automatic detection of locations, automatic playing contents. 2G or more flash memory for rich media files. Support multi-language. Slim and compact design, easy to carry. SpecificationsParmater Value

Screen 2.4 inch true color LCD

Media Audio, Video, Pictures

Content No more than 9999 sections

Sound Inlay audio 32 grade adjustable

Sensor RF and/or IR

Memory Flash (2G or more)

Interface USB 2.0 (charge & data exchange)

Power supply Lithium battery (>10 hours)

Dimension 107mm x 53mm x 17mm
