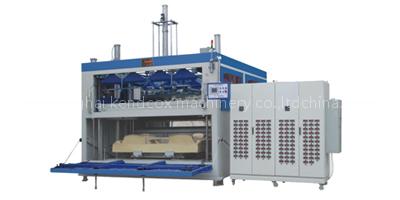

Automatic Thick Sheet Vacuum Forming Machine

1. This kind of plastic machine has been awarded with six national patents
2. It is controlled by time relay
3. Compared with similar products, it is versatile and simple to operate.

Application of Automatic Thick Sheet Vacuum Forming Machine:
1. This kind of thermoforming machine is ideal for thermoforming plastic boards and plastic sheets of ABS, PS, PVC, PE, PP, PC, PMMA etc.
2. It is widely used to make automotive upholstery, motorcycle decoration board, the shell of eclectic scooter, the shell of medical apparatus, refrigerator cabinet, bath ware, lamp etc.

Options:
1. Max. forming depth: 600mm.
2. Double heaters or single heater.
3. Hydraulic pressure system
4. Medium-wave infrared heater (uniform heating, strong penetrability, good reflection and high speed)

Technical Specification of Automatic Thick Sheet Vacuum Forming Machine:

Model	Max. forming area (mm*mm)	Max. height of mold (mm)	Power (Kw)	Overall dimension(L*W*H) (mm*mm*mm)	Weight (Kg)
XSH1007	1000*700	350/650	Approx.42	1800*2800*2600	3300
XSH1510	1500*1000		Approx.74	2400*3300*2600	4300
XSH1515	1500*1500		Approx.97	2400*4300*2600	6800
XSH2010	2000*1000		Approx.105	2900*3300*2600	6000
XSH2015	2000*1500		Approx.137	2900*4300*2600	7800
XSH2020	2000*2000		Approx.179	2900*5300*2600	8500
XSH2510	2500*1000		Approx.128	3400*3300*2600	7500
XSH2515	2500*1500		Approx.181	3400*4300*2600	8100
XSH2520	2500*2000		Approx.232	3400*5300*2600	10300
XSH3020	3000*2000		Approx.277	3900*5300*2600	12500
