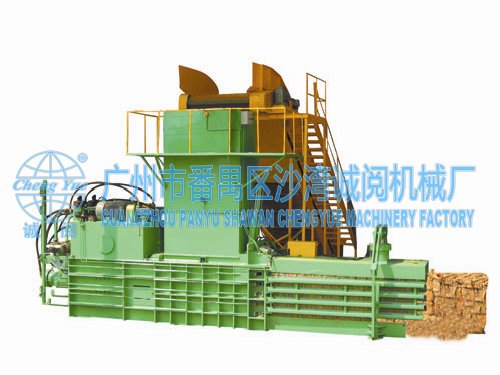

Automatic Powerful Press Baling Machine

Automatic Powerful Press Baling Machine is applied in baling press of incompact material, eg. waste paper, plastic, scrap iron and garbage to minimize the volume for convenient packaging&transporting and to save the storage space.

Main Technical Parameters: 1. Input & output Raw material: waste paper, carton Completed product: waste paper bale, carton bale

2. Energy consumption: Electricity consumption: Cooling tower system:1.5kw Qty. of labors: 1-2 persons

3. Basic Infrastructure 3.1 Electricity supply:380V/50Hz,200V/50HZ,220V/60HZ,440V/60HZ(option) 3.2 Workshop size: At least 16m (length)×15m(width)×4.5m(height) laid in a straight line 3.3 one part of the conveyor(4meter long) need to put in the group(about 1meter deep) 3.4 Necessary lifting plants for loading and unloading machines during install nation and testing

Model: ZYB-150T Bale Volume: 1300*1000*1100, 1300*1100*914, 1300*1100*1100mm Max work Pressure: 1500kn Motor Power: (37/45)*2kw Conveyor Power: 7.5-11kw Capacity: 12-16Pack/h Overall Dimension: 8680*4050*4500, 8680*4150*4314, 8680*4150*4500mm Space for installation of Conveyor: 12400*13800*4600, 12400*13800*4500, 12400*13800*4600mm Total Weight: 32000, 31500, 33000kg

Model: ZYB-120T Bale Volume: 1200*914*914mm Max work Pressure: 1200kn Motor Power: 37/45kw Conveyor Power: 7.5kw Capacity: 8-12Pack/h Overall Dimension: 7350*3680*4200mm Space for installation of Conveyor: 11400*12800*4200mm Total Weight: 24000kg

Model: ZYB-100T Bale Volume: 1000*660*814mm Max work Pressure: 1000kn Motor Power: 30kw Conveyor Power: 5.5-7.5kw Capacity: 8-12Pack/h Overall Dimension: 6860*3230*3900mm Space for installation of Conveyor: 10700*12000*3900mm Total Weight: 20000kg

Charateristic feature: Rigid body structure, high output with low power consumption. Applied with PLC and operator interface touch screen, easy for trouble shooting. Auto started by photo sensor. Bale density and length is free adjustable. All moving mechanism covered by safety quard, free of injury. Initiative twin-cylinder Inserters. Trouble-free isolated twisters.

Guarantee and after-sales services: One year guaratee period. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide them at cost price.

Payment: 30% of total amount should be paid in advance, and the balance before delivery.

Why choose Chengyue? Guangzhou Panyu Shawan Chengyue Machinery Factory is the leading manufacturer of recycling machines since 1995 with the advanced technology and excellent equipments.

We have developed many kinds of recycling machines, including powerful press baling machine, crusher, plastic extractor, dewatering machine, dissolution foam machine and so on. These products are not only with the great appearance and perfect system functions, but also easy to operation and low power consumption.

Due to the persistent effort of our teams and the support of our customers, our factory will strengthen steadily. In the meantime, we have won a great reputation from our customers depend on our firm determination, best quality and excellent after-service.

And our products are very popular not only in China, but also in Japan, Australia, Mexico, America, Canada, Indonesia, Kuwait and so on. Believe Chengyue, we will progress and make a brighter future together.
