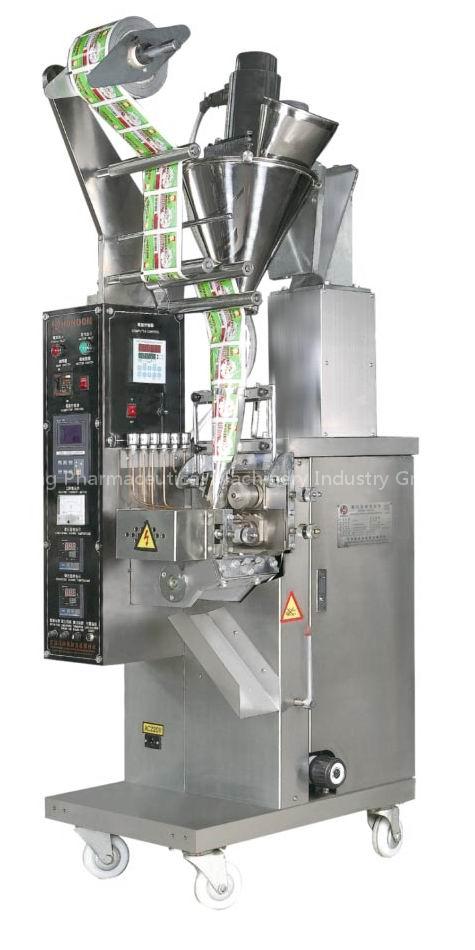

Automatic Powder Packaging Machine

The machine is designed and manufactured specially for powdery and super fine powdery products driven by servomotor, the auger is rotating to fill products; Furthermore, the filling range can be adjusted automatically through computer the processes of bag making, measuring, filling, sealing, cutting, counting and hot pressing codes can be done automatically. Packing material include several kinds of heat-seal lamination, such as pet/plated al/PE, pet/PE, nylon etc.
Features:
1. All stainless steel cover meets to GMP standard.

2. Equipped with antipollution and dustproof device.

3. Automatic adjustment of pouch size and filling range.

4. Automatic self support lubricating system, the machine can work 24 hours and the maximal opacity is 110 begs/min.

5. The operation facility is controlled by American intel computer, all function is displayed with digital screen.

6. Minimum sealing temperature variation employs pid temperature, the tolerance is controlled by 2%.

7. Equipped long filling screw make the sealing area clean and strong and compact shut-off door is used to prevent from product clamping at sealing jaw.

8. Ink printer and conveyor are as an option.

Decoratied in stainless in accordance with GMP regulations

The length is set by the computer.
Hot ink roller and data printer.
Technical data:
HDF-40:
Bag size l: 55~110(mm)/ w: 30~80(mm)
Capacity 50~70 bags/min
Filling range 5~40 mm
Power 220v 50Hz 1.9kw
Weight 350kg
