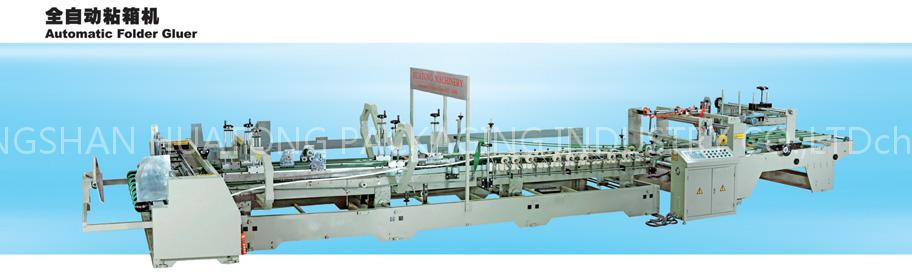

Automatic Folder Gluer

FEEDING UNIT* Feeding adopt belt leading edge feeding mod, accuracy and dependable.* Adopting high-class magnetic clunch and magnetic break system, so the feeding unit can be controlled separately, easy to operate and dependable.* Height of pressing wheel can be adjusted, suitable for cardboard thickness 3~8mm.* Link with folding unit, frequency control, supplying speed 120m/min.* Front baffle board and feeding belt of feeding unit can be left-to-right adjusted.

FOLDING UNITAdopting import high friction force belt to convey cardboard, automatic folding.Folding unit equipped with cardboard correcting device and score correcting device.Specification of cardboard: the least (300×800),the largest(900×1800) TECHNICAL PARAMETERMODEL MAX. SIZE MIN. SIZE POWER MACHINE SIZE

HT-1800 1000×2000 300×800 8kw 3000×11500

HT-2400 1200×2400 350×800 9kw 3200×11500

HT-2800 1400×2800 350×800 10kw 3600×12000

GLUING UNITMain motor adopt frequency control, system with no noise, speeding equality and stable.Glue convey by stainless steel, glue equality, no fault and glue saving.

COUNTING&STACKING UNITAdopting PLC program controller and press-key screen digital control, easy to operate, working dependable, can in-put number continuously, automatic counting, accuracy out-put.

OUT-PUT UNIT Convey box with belt, stacking tidily, stacking speed 120m/min.Pating the box with clapper, with correcting function, few warp.Counting and stacking adopt pneumatic mode, PLC control, working dependable, accuracy and high speed.Out-put unit adopt bottom convey belt and upper press belt same-phase press mode, finished cardboard stick stable and tidily without mistake.
