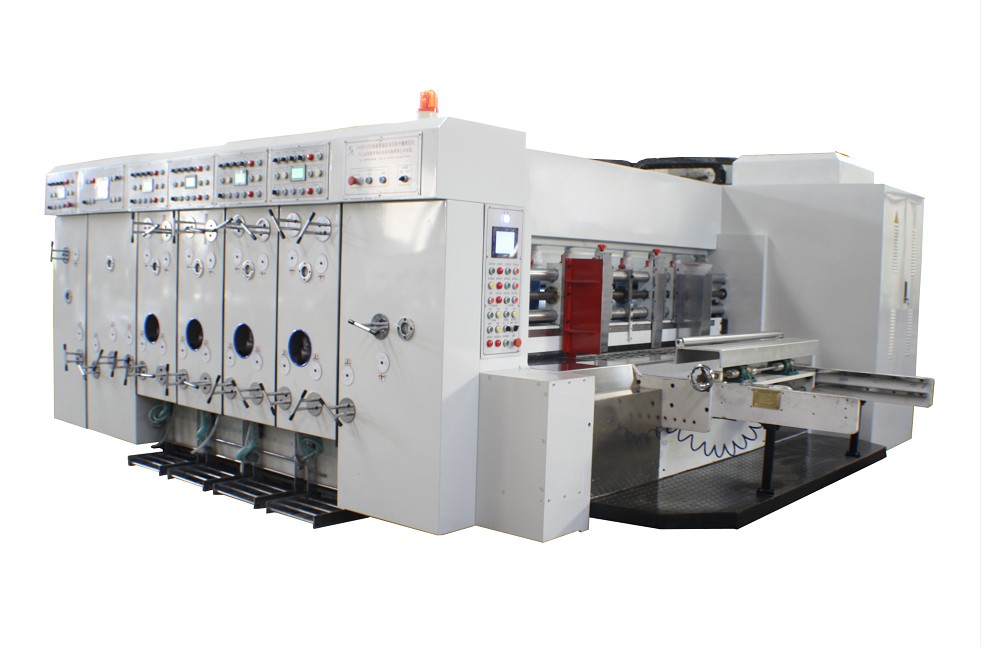

Automatic Flexo Printing and Slotting Machine
Specifications
- Origin
- China
- MOQ
- 1 set
- Packaging
- wooden cases with plastic film
- Price Term
- FOB
- Payment Term
- T/T L/C
- Supply Ability
- 10 sets/month
- Delivery Time
- within 30days after receiving the dowm payment
- Loading Ports
- Tianjin
Automatic Flexo Printing and Slotting Machine is a Packaging & Printing product. Key specs — Origin: China; MOQ: 1 set; Packaging: wooden cases with plastic film; Price Term: FOB.
Product Description
Characteristics 1.All the electrical appliances adopt domestic excellent products. The computer software is imported. 2.With the high efficiency dust removing device, it can clear the dust on the surface of the cardboard so that it can ensure the cleanliness and improve the printing quality. 3.All the drive gears are skewed tooth.
It adopts high frequency quenching, and part of them are cementite treated. After milling, grinding and sprinkle lubricating, the driving precision and using life are greatly improved. 4.It can store orders, and it is easy and convenient to change orders. 5.It adopts PLC and touch screen multifunctional control system, which are reliable.
The malfunction rate is very low and it is easy to operate. 6.The mainframe, blower, phase motor, etc, adopt transducer control. The speed adjusting is steady, and it can save electricity. And it is correct and reliable. 7.This machine has functions of auto returning zero, auto proofreading, etc. 8.With skip feeding function, it can produce bigger cartons.
9.Each set has emergency stop switches, which can ensure the safety of the operators. 10.Rotary Die-cutting unit.
(Option) Main Technical Parameter Model VPSH-916 Max. speed (pcs/min) 140 Max. feeding size (mm) 2000/2200/2400×916 Skip feeding size (mm) 2000/2200/2400×1200 Max. printing size (mm) 1800/2000/2200×850 Min. feeding size (mm) 560×260 Thickness of printing plate (mm) 7.2 Printing Color 1-4 color Min. slotting space (mm) 210×50×210×50 Max. slotting depth (mm) 230 Printing precision (mm) ±0.5
