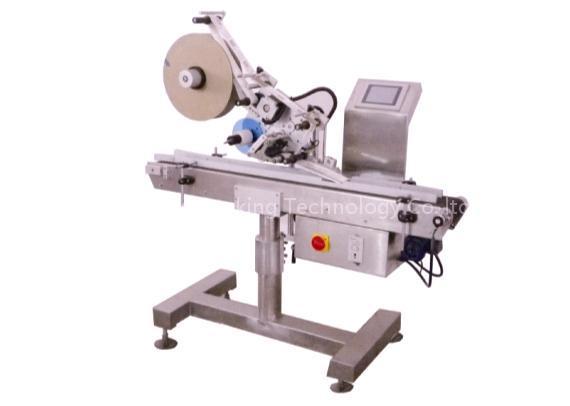

Automatic Corner-folded Top Labeler
Specifications
- Origin
- Shenzhen，Guangdong，China
Automatic Corner-folded Top Labeler is a Packaging Labels product. Key specs — Origin: Shenzhen，Guangdong，China.
Product Description
Automatic Corner-folded Top Labeler Application:This machine is designed for Corner-folded Top Labeleron flat products Features:1.Machine main construction by Stainless Steel #304;2.PLC combined with touch screen control system;3.High accuracy labeling:±1mm tolerance;4.Servo motor driven labeling head,labeling speed is automatically synchronized with conveyor speed to ensure high speed and quality labeling;5.Choose automatic feeding system Option:1.Hot printer2.Transparent label sensor3.Customer made width product conveyor Specification: Model ALB-210-B
Label Width A:10-120mm;B:10-180mm;
Label Length 10-200mm
Product Height 1-160mm
Labeling Speed 12-35m/min
Reel Inner/Outer Dia. Within76/360mm
Machine Dimension(mm) L1450×W700×H1200
Tips The actual technical parameters, which will be confirmed by both parties, will be subject to different packaging material and requirements.
