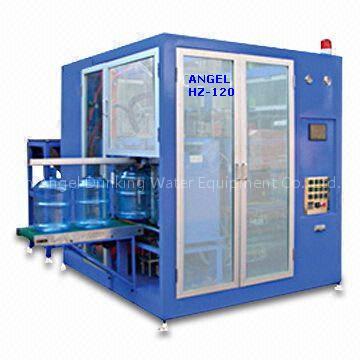

Automatic 5 Gallon Blow Molding Machine

Detailed Product Description ANGELHZ-120 fully automatic stretch blow moulding machine produce bottle form 5 L to 25 L. Neck finish from 15 mm to 200 mm. It is suitable to produce thermo containers of PET, PC material. Feeding system carries the performs automatically. Precise design of heater ensures even heating for the performs.

It is especially used to produce 5-gallon large volume containers. Specification: Container volume: 5-6L (2 cav) 10-1L (1 cav) Theoretical output: 5 gallon: 120PCS/hr; 5L 700PCS/hr Max.

Length of bottle: 450mm Bottle diameter: 350mm Mould plate dimension: 520 x 600mm Mould thickness: 400mm Clamping force: 300kN High press compressor: 1.2/30Mpa Low press compressor: 1.6/10Mpa Power: 20kW Voltage/frequency: 220-380V / 50-60Hz Machine dimension: 2.60 x 1.90 x 1.95m Main body weight: 2.8T
