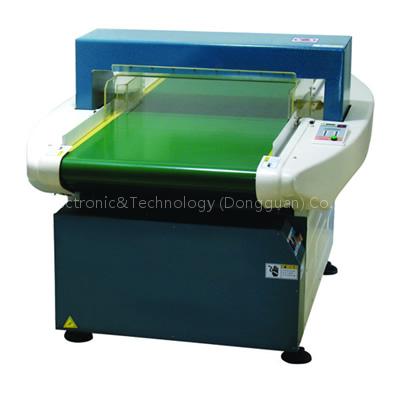

Auto-conveying Metal Detector EJH-2

Mainly used for detecting ferrous metal that load or drop in raw materials and products in the field of toy, costume, shoemaking, chemical industry, leather, knitting,etc.

Functions

sensitivity and strong interference immunity.

B.light structure and move conveniently.

C.various of specifications of inspection window which can be chosen at will according to customers' needs.

D.quick conveying speed,applicable to pipeline operation.

E.matches the pipeline operation or automatic control device.

Correlation parameter

Normal height of inspection window(mm):100-125-150-200

Normal width of inspection window(mm) :600

Sensitivity-Diameter of steel ball(mm) :Φ1.0-2.0(10 levels adjustable)

Power: 140W

Alarm:Audible and visual automatic stop

Size: 1950(L)×1100(W)×1200(H)mm

Weight: 150kg

Electrical source: 220V 50Hz
