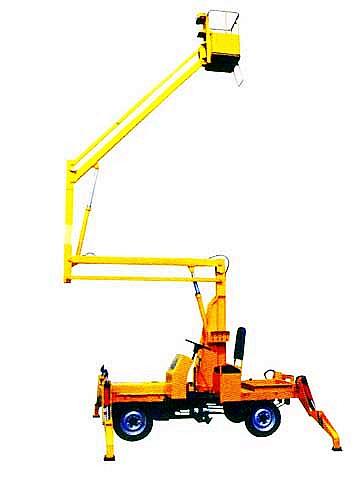

Articulating boom lift
Specifications
- Brand
- scissor lift
- Origin
- China
- Price Term
- FOB
Articulating boom lift is a Office Desks product. Key specs — Brand: scissor lift; Origin: China; Price Term: FOB.
Product Description
working height: 6m, 7.7m,9.7m,10.5m,12m
2.Table size: 800*600mm
3.Platform capacity:100kg,160kg,200kg
4.Travel speed: 20-40km/h
Specification of boom lift:
Model | SYQB0.2-6 | SYQB0.2-8 | SYQB0.15-10 | SYQB0.15-12 | |
Max working height(m) | 7.7 | 9.7 | 10.5 | 12 | |
Max turning radius(m) | 1.5 | 2.2 | 2.7 | 3.2 | |
Rotation angle | 360° | 360° | 360° | 360° | |
Platform capacity(Kg) | 200 | 200 | 160 | 160 | |
Total dimension(mm) | 2.3*1*2 | 3.5×1.2×2.5 | 3.5*1.7*2.9 | 3.9*1.95*3 | |
Total weight(Kg) | 750 | 850 | 1600 | 1900 | |
Table Size(mm) | 800*600 | 800*600 | 800*600 | 800*600 | |
Working pressure(Mpa) | 10 | 10 | 10 | 10 | |
Travel speed(Km/h) | 20-40 | 20-40 | 20-40 | 20-40 | |
Anti-wind capability | ≤5 level | ≤5 level | ≤5 level | ≤5 level |
1, It has automated drive and hydraulic automatic leg which can be rotated 360 degrees.
2, Compact folding arm, high strength, light weight, direct access to AC or DC power supply with its own start, set up fast and early.
3, they can also stride across the barriers to work without external power supply.
4. The lifting platform is made of good steel that can work efficiently .It’s easy to span block to work.
Attention:
1. When the platform works, the work bench should be horizontal
2. When work outdoors, workers should wear safety rope when the platform is higher than six meters.
3. In the process of lifting platform, anyone is prohibited from climbing.
4. Forbid working until support legs are right. After littered, platform should not be moved.
