Argon arc auto darkening welding mask

1). The super large viewing window of welding helmet is 92×42 mm, giving you a full and clear view of welding area, the product has passed CE,ANSI Z87.1 certifications.

2). The auto darkening welding lens (ADF) adopts advanced electro-optical technology of Germany. DIN 9-13 level is accurate and adjustable, suitable for various kinds of welding molds such as TIG, MMA, MIG / AMG and plasma cutter, Applicable from 30 Amp to 600 Amp welding environment.

3). The viewing window of welding helmet is designed in consideration of man-machine engineering demands, with a comfortable zoom scale.

4). Adopting the high quality multilayer liquid crystal optical lens, the auto darkening welding lens (ADF) can not only provide you a clear view, but also safely protect your eyes from infrared ray / ultraviolet ray radiation.

5). The design is based on standard dimension so that different types of welding helmets and lenses can be applicable.

6). EF9242 and EF9242J auto darkening welding lenses adopt the design of replaceable lithium battery, which effectively prolongs the service life of product. It is the most economical option for helmet.

7). The streamlined shape of welding helmet effectively avoids the form of mist when a welder breathes in low temperature and therefore guarantees the welder to breathe normally. The appearance is light and simple.

8). The response time of welding helmet is very fast as high as 1/25000s.

9). The design of anti-interference guarantees many welding machines can be worked together, and the high / low sensitivity can be selected.

10). The material of welding helmet features high / low temperature resistance, anti-corrosion, high flame resistance, soft texture, lightproof and high shock resistance.

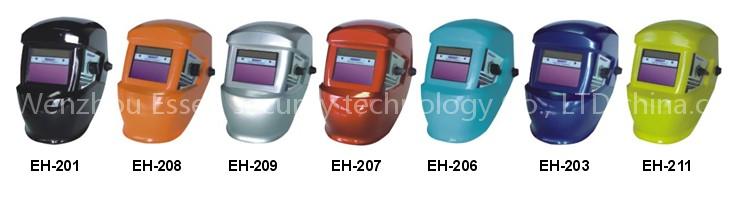

11). The various colors of the welding helmet are available including red, blue, green, yellow, black and other colors.

12). The headband of welding helmet can be adjusted flexibly, saying big or small, front or back, up or down, in accordance with your head shape and comfort. Applicability Auto darkening welding helmet is ideal for protecting welder’s eyes and face in various kinds of welding operation. It can effectively prevent such harmful arc lights as infrared ray and ultraviolet ray produced in welding operation, and receive the safest visible light after filtering. Meanwhile, the helmet, made from green modified material, can effectively insulate thermal radiation, avoiding such occupational diseases as cataract caused by infrared radiation, hypopsia, dazzle, electro-optic ophthalmia, etc. This product not only can free the hands of welders to improve work efficiency, but also help welders to clearly view the welding points to guarantee the good quality.

2. Parmeters.

1).Auto-darkening Welding Helmet Model:EH-100/EF9242.

2). Fire resistanc: yes.

3). Material & Weight: PA/ PP, 0.56kgs.

4). Viewing area: 92*42mm.

5). ADF Frame Size:110*90mm.

6). UV/IR protection: up to shade DIN 15 at all time.

7). Light state: shade DIN 4.

8). Variable shade: from DIN 9 to DIN 13.

9). Power supply: solar cells, two lithium batteries be changed.

10).Auto-darkening Welding Helmet Switching time

a) Light to dark: 1/25,000s.

b) Dark to light: 0.6~0.8s.

11). Sensitivity:low or high (TIG).

12). Power on/off : Automatic.

3. EH-1Helmets Series Adapt to ADF: EF9242J,EF9242,EF9646,EF9848.

4. Auto-darkening Welding Helmet Colour: blue,green,silver,black,yellow,red

spay-paint according to customer’s choices.

5.Auto-darkening Welding Helmet Dimension: 340mm*220mm*190mm.

7.Auto-darkening Welding Helmet Packing methods

a). 4 pcs of helmets packed together in one carton( normal).N/G weight: 2.568/5.455KGSSize of carton: 540*534*316mm,Color inside box.

b). 10 pcs of helmets packed in one carton( economical).N/G weight: 6.42/11.5KGSSize of carton: 742*534*290mm,Color inside box.

c). 20 pcs of helmets packed in one carton (economical).N/G weight: 12.2/21.8KGSSize of carton: 750*560*445mm,Color inside box.
