Antique Furniture,engraving machine

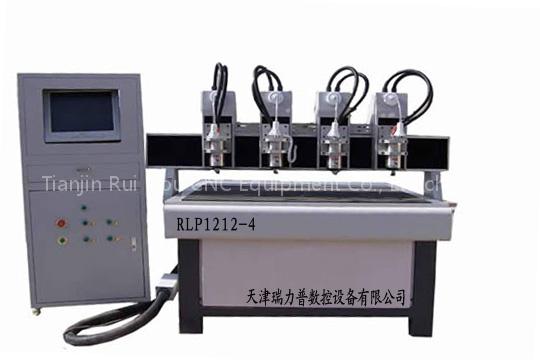

RLP-1212-4: Features â—† four heads simultaneously processing can also be used alone, more than fourfold increase in the efficiency of the single head. â—† RLP-1212 screw drive, economical, cost-effective. â—† precision ball screws Preload Consumers gap, the gap induced by movement reduced to a minimum.

More accurate positioning accuracy. â—† 4 row ball bearing linear guide, self-lubricating block, carving equal force when the direction to ensure the accuracy and mechanical strength. â—† breakpoint memory by way of guarantee in the accident (suitable for advertisement) or the next day, to continue processing. â—† gantry movement, the whole bed casting, rugged, long life without distortion.

For industry â—† woodworking industry: classic mahogany furniture processing. â—† Advertising Industry: Advertising signs, logo making, acrylic cutting, plastic molding, multi material advertising the production of decorative products. â—† Others: can carve all kinds of video sculpture, relief, widely used in craft industries. â—† can be applied: cutting aluminum industry, aluminum, aluminum panels, aluminum honeycomb board, aluminum, 3D Louhua technology, wave board production, opening all kinds of man-made sheet shaped material, LED, neon trough literally cutting, suction plastic lamp molding.

Acrylic, copper, PVC board, artificial stone, MDF board and other kinds of sheet metal processing. Performance parameters NO.

Performance performance index parameter is optional A trip within the X travel 1200mm 2000mm Y travel 1200mm 4000mm or less Z travel 120mm 450mm or less 2 platform size 1340 * 1540mm 3 precision machining accuracy 0.05mm Repeat positioning accuracy of 0.02 4 Structure of the table structure of aluminum X, Y, Z structure of screw 5 speed maximum speed 10000mm/min blank lines Maximum working speed 6000mm/min 6 Spindle power 0.8KW 1.0 \ 1.5 \ 2.0kw Spindle speed 0-24000r/min Step 7 operating modes Servo 8 voltage AC220V/50Hz 9 G code to run command 10 operating system handle 11 Net weight 380Kg 12 Gross weight 500Kg
