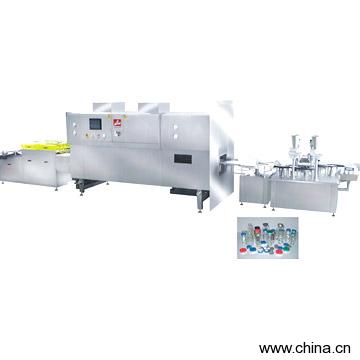

Antibiotic Production Line

Model No.: Product Origin:China Brand Name: Price Terms: Payment Terms: Certification: Description:Main applications: The whole line is made up of QCX6 type ultrasonic washing machine, ASMR 620/23 type sterilizing and drying machine with tunnel, FGG2/16 type powder filling and capering machine (or DGF16/24 liquid filling and capering machine), as well as FGL12 type capering machine, which is divided into four workaround of rinsing, drying and sterilizing, filling, capering and sealing.

Each single machine has its specific function, which can be used either with other machine or singly.

When it comes to combine with other machines, it can carry out the working procedures of ultrasonic cleaning, worm turning bottle, flushing water and air, preheating, drying and sterilizing, cooling, (charging nitrogen), filling, (post nitrogen charging), plug handling, plug picking, cap pressing, cap handling, cap addling and cap fastening.

In addition, it is matched with labeling machine to complete production line.

It is suitable for the production of antibiotic powder / aqua in pharmaceutical industry.Performance and characteristics: 1) Adopting advanced ultrasonic cleaning and flushed by spiny hydrosphere alternatively, dried and sterilized by laminar flow hot air, multi-needle filling, multi-head capering and multi-head sealing adopts advanced technology 2) It has clean, compact structure, small occupying area3) Adopting the photoelectric technology, PLC, LCD colorized touch screen control technology, high automation4) Needs few operators, with strong compatibility5) Changing few specification parts, easily changed Main technical parameter:1) Suitable size: 2 - 25ml2) Production capacity: 100 - 300bottles/min 3) Electric capacity: 32kW4) Net weight: 5,300kg
