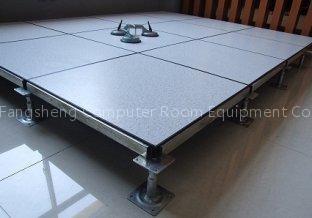

Anti-Static Raised Access Floor

Delivery Time:Prompt
Certification:ISO9001
Anti-Static Raised Access Floor

Feature:

1).Designed specially for computer room, control rooms, etc

2).The raised floor consist of following parts"

a)30mm or 35mm thickness cement core panel
b)4 pieces of black PVC stripps along the side of panel
c)Covering:HPL
d)pedestal, stringer, screws

3).Light cementitious fill makes panel solid and quite

4).Completely non-combustible;class a flame spread and smoke development rating

5).Easy and quick accessibility, resist pollution, easy to clean, durable

Specification  :

Type		Size (mm)	Concentrated Load(deflection=2mm)			Uniform Load (N/m2)	Ultimate Limit Load   (N)	System Resistor(Ω)
International	National Standard SJ/T10796		Ib	N	Kg
FS450	HDG600 HDG610	600x600x30	≥450	≥1960	≥200	≥8850	≥5900	1X106 ~ 1X1010
FS680		600x600x30	≥680	≥2950	≥300	≥12500	≥8250
		600x600x35
		610x610x35
FS800		600x600x35	≥800	≥3550	≥360	≥15000	≥10650
		610x610x35
FS1000		600x600x35	≥1000	≥4450	≥450	≥23000	≥13350
		610x610x35
FS1250		600x600x35	≥1250	≥5560	≥568	≥33000	≥16680

Application: Be applied in all kinds of computer rooms widely, especially in school's computer rooms such as in multimedia classrooms, computer rooms, etc.
