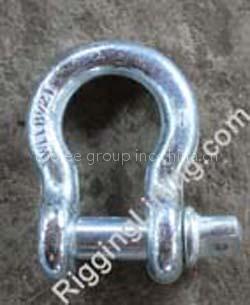

Anchor Shackle,Screw Collar Pin,US SPEC.

Screw Pin Anchor Shackle

Anchor Shackles, Screw Collar Pin,Forged Alloy Steel,High Tensile Strength, Meet to US Federal Specification.G209

Forged shackle, Lifting shackle, Bow shackle, Screw pin shackle.

Material &Process: Carbon steel & alloy steel, drop forgedClass or Grade: grade 60Certificate: test cert as request.Finished: Sel-color/E-GALV./Hot Dipped Galv.Packing: gunny bags/cartons/customer Minimum Order Quantity: 200pcs for one batch.

ITEM NO	NominalSize	WorkingLoadLimit	Dimensions(mm)											Weighteach
	(in.)	(tons)	A	B	C	D	E	F	G	H	I	M	N	(kg)
AS0632	3/16	1/3	9.65	6.35	22.4	4.85	15.2	14.2	24.9	37.3	4.06	28.4	4.85	0.03
AS0832	1/4	1/2	11.9	7.85	28.7	6.35	19.8	15.5	32.5	46.7	4.85	35.1	6.35	0.05
AS1032	5/16	3/4	13.5	9.65	31.0	7.85	21.3	19.1	37.3	53.0	5.60	42.2	7.85	0.09
AS1232	3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	45.2	63.0	6.35	51.5	9.65	0.14
AS1432	7/16	1-1/2	19.1	12.7	42.9	11.2	29.5	26.9	51.5	74.0	7.85	60.5	11.2	0.17
AS1632	1/2	2	20.6	16.0	47.8	12.7	33.3	30.2	58.5	83.5	9.65	68.5	12.7	0.33
AS2032	5/8	3-1/4	26.9	19.1	60.5	16.0	42.9	38.1	74.5	106	11.2	85.0	17.5	0.62
AS2432	3/4	4-3/4	31.8	22.4	71.5	19.1	51.0	46.0	89.0	126	12.7	101	20.6	1.07
AS2832	7/8	6-1/2	36.6	25.4	84.0	22.4	58.0	53.0	102	148	12.7	114	24.6	1.64
AS3232	1	8-1/2	42.9	28.7	95.5	25.4	68.5	60.5	119	167	14.2	129	26.9	2.28
AS3632	1-1/8	9-1/2	46.0	31.8	108	29.5	74.0	68.5	131	190	16.0	142	31.8	3.36
AS4032	1-1/4	12	51.5	35.1	119	32.8	92.5	76.0	146	210	17.5	156	35.1	4.31
AS4432	1-3/8	13-1/2	57.0	38.1	133	36.1	92.0	84.0	162	233	19.1	174	38.1	6.14
AS4832	1-1/2	17	60.5	41.4	146	39.1	98.5	92.0	175	254	20.6	187	41.1	7.80
AS5632	1-3/4	25	73.0	51.0	178	46.7	127	106	225	313	25.4	231	57.0	12.6
AS6432	2	35	82.5	57.0	197	53.0	146	122	253	348	31.0	263	61.0	20.4
AS8032	2-1/2	55	105	70.0	267	69.0	184	145	327	453	35.1	330	79.5	38.9
