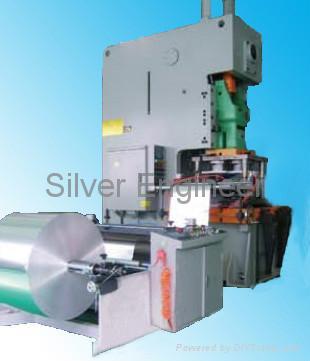

Aluminum foil container making line

We have the 45ton type,63Ton,80ton type,100ton type,Common feeder , Embossing feeder ,Common collector and Auto Stacker for your optional :

SEAC-63 : Automatic Feeder (Optional) +Automatic 63Ton Press +Great Mould+Collector/Auto Stacker(optional).
Specification:
material: Aluminum foil thickness: 0.040mm ~0.250mm, 8011,3003,3005 etc.;
2.Japan Panasonic Inverter and PLC control system;
3.Max. width of the Aluminum foil roll: 800mm;
4.Max. diameter of the Aluminum foil roll: 700mm;
diameter of the Aluminum foil roll: 76/152mm(3inch/6inch Optional );
6.Working speed: 40-65 times/min;
7.Total Power :12.5kw;
8.Compressed air needed: 0.5- 0.8 Mpa (prepared by the customer)

Technical Data:
Max.container size is 550*400*94mm ;
Slide block stroke is 180-260mm;
Work plate dimension is 1200*900mm;
Mould handle hole dimension is 50*60mm(diameter*depth);
Total line size:6000*2600*3100mm;
Net weight :9,oookg .

Emboss feeder is a nice design,it's a amphibious feeder,it could embossing the foil together feeding;and you can use it only to feeding foil,just need to adjust the emboss unit,so easy !
SEAC-63,Aluminum Foil Container Making Machine is the perfect way to produce food packing containers. It fit for production all kinds of container as you need, the container's quality accord to the International Environment Protect Standard. Our customer from Mainland,India, Middle East, USA etc.
