Aluminum Plastic Composite Panel

Model No.: Product

Origin:China Brand

Name:Sanxing Darren, Gangji, San'ai

Price Terms:FOB, CIF, CFR

Payment Terms:T/T or L/C at sight

Certification:ISO9001 Description:

Materials:1) Front side: aluminum roll coated with PVDF or polyester2) Core: plastic fireproof materials3) Rear side: aluminum coated with polyester

Specifications:1) Aluminum sheet thickness:a) 0.50 x 0.50mmb) 0.45 x 0.45mmc) 0.40 x 0.40mmd) 0.35 x 0.35mme) 0.30 x 0.30mmf) 0.25 x 0.25mmg) 0.21 x 0.21mmh) 0.18 x 0.18mmi) 0.15 x 0.15mmj) 0.12 x 0.12mmk) 0.10 x 0.10mm2) Panel thickness: 2mm, 3mm, 4mm, 5mm, 6mm3)

Dimensions:a)

Width: 1220mm, 1250mm, 1550mmb)

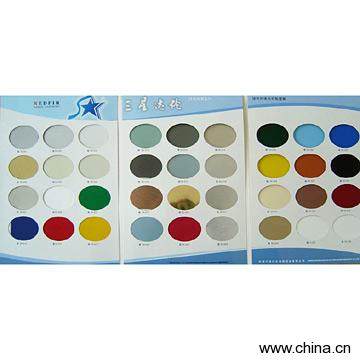

Length: 2440mm, upon customers' request4) Standard size (width x length x thickness):a) 1220 x 2440 x 3mmb) 1220 x 2440 x 4mmc) 1220 x 2440 x 5mmd) 1220 x 2440 x 6mm5) Normal color: 10 kinds6) Non-standard sizes and special colors are available according to customers' requests Characteristics:1) Excellent fireproof property2) Super peeling strength3) Perfect cold resistance performance4) Excellent surface flatness and smoothness5) Superior weather, corrosion, pollutant resistance6) Even coating, various colors7) Superior impact resistance8) Lightweight and easy to process9) Easy to maintain Application scope:1) Gas piping, cables, building materials, etc (this product fills a gapin the domestic construction materials field, with performanceindexes superior to panels manufactured overseas)2) Curtain wall decoration for buildings where security is important, such as airports, hospitals and research centers3) Curtain wallboards for outside walls of normal buildings4) Renovations for old buildings and movable houses5) Reformation and decoration for indoor walls, ceilings, bathrooms, kitchens and balconies6) Facades7) Billboards, exhibition desks and notice boards8) Wallboards and ceilings for tunnels9) Materials for industrial application, car and ship bodies

Packing: Wooden pallet or in bulk
