Aluminum Foil Container Making Machine
Specifications
- Origin
- China (Mainland)
- Price Term
- FOB
Aluminum Foil Container Making Machine is a Packaging Machines product. Key specs — Origin: China (Mainland); Price Term: FOB.
Product Description

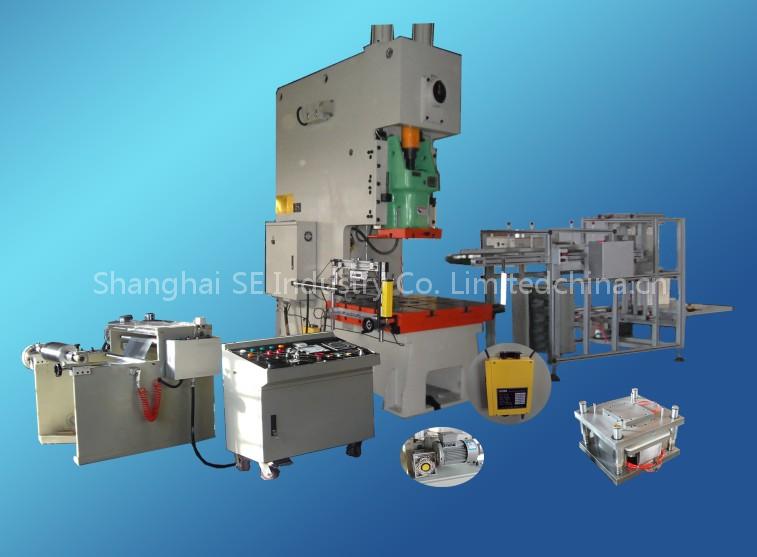

We have the 45ton type,63Ton,80ton type,100ton type,Common feeder , Embossing feeder ,Common collector and Auto Stacker for your option : SEAC-63 : Automatic Feeder (Option) +Automatic 63Ton Press +Great Mould+Collector/Auto Stacker(Option).
Specification: material: Aluminum foil thickness: 0.040mm ~0.250mm, Alloy like 8011,8006,3003,3005 etc.;2.Japan Panasonic Inverter ,PLC and touch screen control system;3.Max. width of Aluminum foil : 800mm;4.Max. diameter of Aluminum foil : 700mm;diameter of Aluminum foil : 76/152mm; 6.Working speed: 40-65 times/min;7.Total Power :12.5kw; 8.Compressed air needed: 0.5- 0.8 Mpa, 0.1m3/min (Prepared by customer) Technical Data: Max.container size : 550*400*94mm ; Slide block stroke : 180-260mm; Work plate dimension : 1200*900mm; Mould handle hole dimension: 50*60mm(diameter*depth); Total line size: 6000*2600*3100mm; Net weight : 9,oookg .
Emboss feeder is a nice design,it's a amphibious feeder,it could embossing the foil together feeding;and you can use it only to feeding foil,just need to adjust the emboss unit,so easy ! SEAC-63,Aluminum Foil Container Making Machine is the perfect way to produce food packing containers.
It fit for production all kinds of container as you need, the container's quality accord to the International Environment Protect Standard. Our customer from Mainland,India, Middle East, USA etc.
