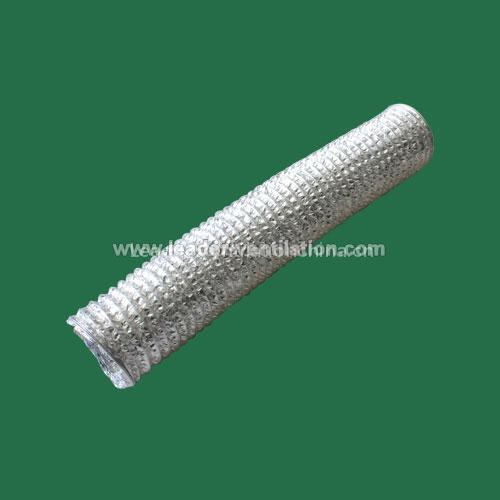

Aluminum Flexible Duct

ApplicationALU---The aluminum flexible ducts are specially designed for HVAC (heating, ventilation and air conditioning) systems with low and medium pressure.Structure They are made from multi-layered alum.

Strengthened with high tension hard steel spring wire.Advantages & PropertiesHigh elasticity and flexibility.Low cost on transport and logistic.No special tools required for cutting and fixing.Can be easily fitted to circular, oval or rectangular connectors.Individually packed or nested (put a smaller one into a bigger on to save space).Technical Specifications Construction aluminum foil+polyester film

Available Diameters 3” -18” (76.2-457.2mm)

Temperature Range -30°C/+140°C

Air Velocity 30 m/s (Max. )

Operating Pressure 3000 Pa (Max.)

Standard Length 10 m
