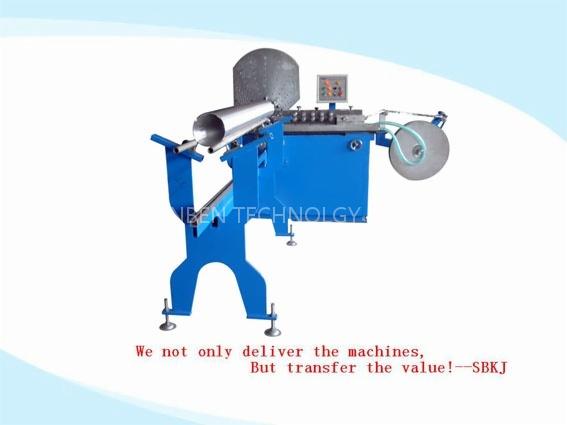

Aluminum Duct Forming Machine
Listing ID#10210237
ModelSBLF-300-B
CategoryBusiness Services
Business Services

Aluminum Duct Forming Machine

Specifications

Origin
jiangyin
Price Term
FOB
Request Quote
Quick answer

Aluminum Duct Forming Machine is a Business Services product. Key specs — Origin: jiangyin; Price Term: FOB.

Product Description

Main Technical Date:

DiameterĀ80---Ā500mm
Length100---4000mm
Material Thickness0.06---0.15mm(Aluminum foil strip)
Raw material width60mm
Compression ratio1:3.5 (means make the 3.5m tube to 1m)
Surface corrugation7 corrugation
Lock wayDouble-decked tabby locking
Feeding speed0---46m/min
Electricity controlPLC
Refrigeration systemEmulsified liquid cooling
Electrical power380V,3PH,50Hz
Main motor power1.5kw
Power of Pump0.04kw
Power of cutting0.12kw
Diameter of raw material coil∮min=70mm(inside), ∮max=500mm(outside)
Weight of raw material coil50Kg
Mainframe dimension2210×830×1530mm
Weight of Mainframe440kg
run-out table diamesion2300×1200×650mm
Weight of run-out table50kg
