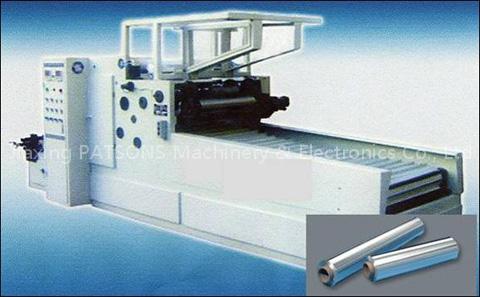

Aluminium Kitchen Roll Production Machine

Machine Features: - Fully auto core loading, gluing, slitting and rewinding of foil rolls - Complete with meter cutting length control - Combination of both Western & Asian Technologies on complete production and control - With auto feeding aluminium foil speed control, alignment and adjustment - High productivity and user-friendly - Complete with all safety features - Customized core width meeting to respective buyers requirement

Technical Data:

Raw materials aluminium foil thickness - 0.01mm to 0.02mm

Raw materials widt - 250 to 600mm roll width

Maximum unwind roll diameter - 600mm diameter

Raw material mother roll core id - 75 to 76mm (core id)

Finished Roll Rewinding Core id - 24mm, 30mm, 38mm

Slitting length finished roll control - 3M to 330M

Production Speed (basing 5M length) - Between 7-10 rolls / minute

Unloading magnetic power brake - 25N.M

Winding magnetic power clutch - 12N.M

Electrical Power & Supply - 4KW

Weight of machine - 1500kg

Dimension of machine (L x W x H) - 4164mm x 1100mm x 1820mm

Vidio presentation is available upon receive your inquiry message!
