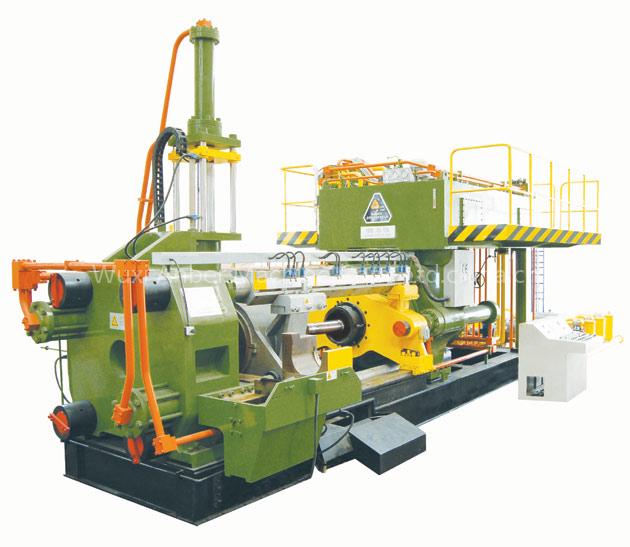

Aluminium Extrusion Press

Anber Aluminum Extrusion Press is a certified aluminum extruder that specializes in top notch, high precision extrusions. No matter what type of aluminum products you need, the quality of the finished product depends largely on our extrusion process.

The advantage of aluminum extrusion over other materials is that aluminum is a non-magnetic, non-combustible, and non-toxic material that is easy to form and extrude into simple and complex shapes. Other materials such as steel, molded plastic, and copper are not as efficient.

As an expert in extrusion, we can supply all upstream and downstream auxiliary equipments to complete a extrusion line based on actual conditions of customer, such as cooling bed, extrusion moulds, correction machine, casting furnace, etc.

Specific1ations for 1800MT Aluminium Extrusion Press:
Container inner diameter: 170~185mm (only for reference)
Container length: 750mm
Extrusion pressure: 18MN
Main system pressure: 21MPa
Extruding stroke: 1500mm
Extruding speed: 12mm/s (adjustable)
Back stroke force: 900KN
Locking force: 1400KN
Die opening force: 1600KN
Shearing force: 600KN
Heating power: 45KW
Center height: 1435mm
Total weight: 100T
