Alarm Controller is a Other Safety Products product. Key specs — Origin: China; Price Term: EXW.
Product Description

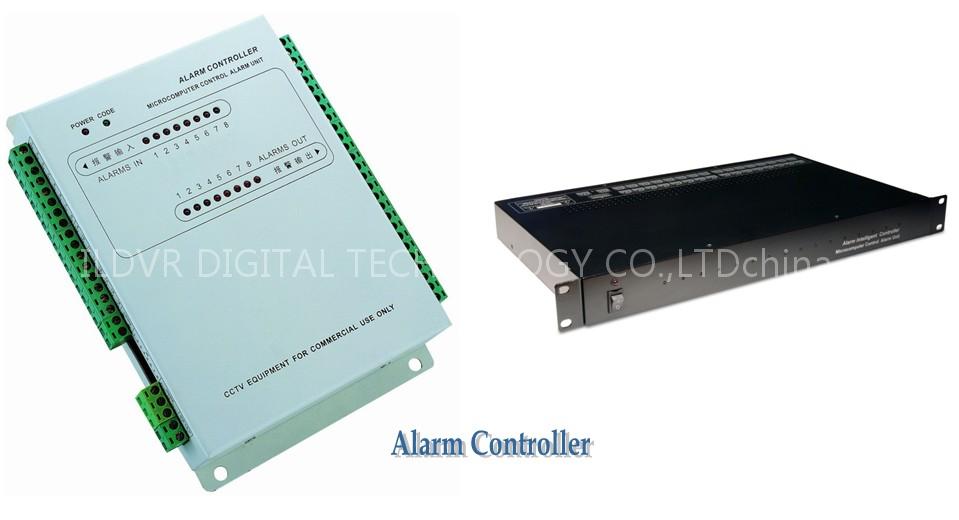

Alarm controllers are used for anti-theft, fire prevention, door alarm and remote surveillance. It can capture spot alarm information more than 1,000 meters away and transmit to a computer. It has sensor-in ports and data-out ports that could be used for light, alarm, loudspeaker or cameras. ILDVR alarm controllers are guaranteed to be fully compatible with our 3000H4C/E system and 3000H4F system.
Models: ALM-0808 ALM-1608 ALM-1616 ALM-3232
ALM-0808
Specifications: Alarm In :8-port Normal Open / Normal Close Input Voltage: 0 ~ +15V Alarm Out :8-port Normal Open / Normal Close connector Power Supply :DC12V / 10W Communication Protocol :Half Duplex RS-485 Output Power :10A / DC28V, or 7A / AC220V Dimension :182mm×120mm×30mm
ALM-1608
Specifications:
Alarm In :16-port Normal Open / Normal Close Input Voltage :0 ~ +15V Alarm Out :8-port Normal Open / Normal Close connector Power Supply :DC12V / 10W Communication Protocol :Half Duplex RS-485 Output Power :10A / DC28V, or 7A / AC220V Dimension :182mm×120mm×30mm
ALM-1616
Specifications:
Alarm In :16-port Normal Open / Normal Close Input Voltage :0 ~ +15V Alarm Out :16-port Normal Open / Normal Close connector Power Supply :DC12V / 10W Communication Protocol :Half Duplex RS-485 Output Power :10A / DC28V, or 7A / AC220V Dimension :484mm×300mm×45.5mm
ALM-3232
Specifications:
Alarm In :32-port Normal Open / Normal Close Input Voltage :0 ~ +15V Alarm Out :32-port Normal Open / Normal Close connector Power Supply :DC12V / 10W Communication Protocol :Half Duplex RS-485 Output Power :10A / DC28V, or 7A / AC220V Dimension :484mm×300mm×90mm
