Al Substrate 1 led 5050 SMD module - SQL-AP50-01 Specificaton & Trade Terms
Model | SQL-AP50-01 |
---|
Place Of Origin | China |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|

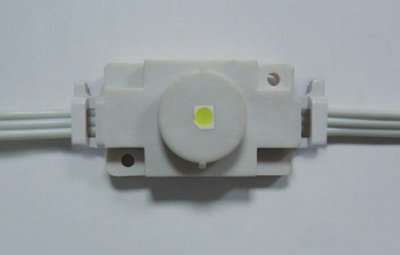

Al Substrate 1 led 5050 SMD module
Input Voltage:DC12V
Warranty:2 years
Factory direct
Power:0.1W
View angle:120°
Features:
Super bright SMD top LED & viewing angle, high brightness output, no spot and shadow.
Colors can be chosen as R/G/B/Y/W, and the lumen is 2/4/1.5/2/6lm.
Low power consumption & operating voltage, safe and energy-saving.
With IP65 protection rating.
Solid-state, high shock or vibration resistant, long lifetime, more than 50000 hours.
Easy installation with mounting holes and 3M adhesive tape on the back.
Application:
Widely used in household lighting.
Backlighting for advertisement, signboard and billboard.
Backlighting for light box.
Signal lamp for channel.
Direction:
The module is 20pcs/string, 1.6A current per string. User can put several strings in
parallel connection, each string running a loop. Lest the nonuniform color caused by the
voltage drop, the cable section of main power supply should not less than 2.5mm2.
The module number of each string is customizable or a single use.
Keep it in a well-ventilated environment, good for heat dissipation.
When connecting, yellow wire to connect power “+”, white wire to connect power “-”.
Don't reverse.
Banned charged work.
Suggested to use brand switching power supply with safety certificate.(with short circuit,
over voltage, current protection function)
