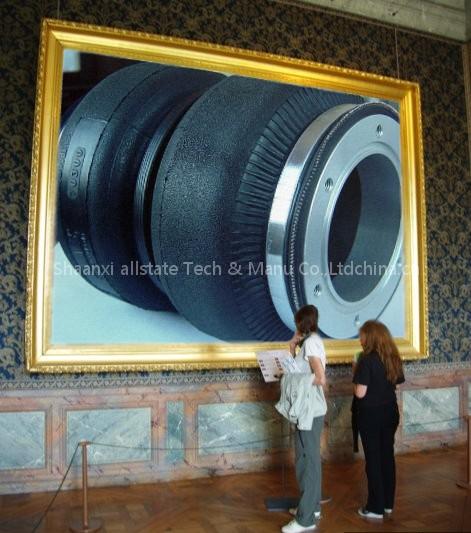

Air Spring/Air Bellow is a Springs product. Key specs — Origin: China; Price Term: FOB.
Product Description
nbsp; We are the leading suppliers of high quality air spring system to the transports industry,having particular emphasis on cost effective engineering,design and test,manufacture and supply of truck and trailer air suspension,lift axle suspensioms and components to suit the OEM manufactures in our production technique is considered the best in China,and our product are considered the standard by the Ministry of Lighr Industry Ministry.
products:
H series Air spring
BELLOWS : Wall gauge is approximately 5 mm. GIRDLE HOOP: Wire wound type shown, molded into thebellows.
BEAD RING: upper and lower. countersunk steel type shown. May also be of a second stamped steel variety or made of aluminum. AIR INLET: 1/4BSP parallel is standard. 3/4BSP parallel is also available for most parts
nbsp;BOLT: M10 x 45 mm Used for mounting the part. MOUNTING PLATE: The plates must be strong enough and backed by structural members to prevent bowing of the forces or loads involved
J series Air spring
BLIND NUT: M8 x 15 (two or four per each plate depending on part size). Used for mounting the part.
MOUNTING PLATE: The plates must be strong enough and backed by structural members to prevent bowing (of the forces or loads involved AIR INLET: 1/4BSP parallel is standard. 3/4BSP parallel is also available for most parts
K series Air spring
BLIND NUT: M8 x 15 (two or four per each plate depending on part size). Used for mounting the part.
MOUNTING PLATE: The plates must be strong enough and backed by structural members to preventbowing (of the forces or loads involved. AIR INLET: 1/4BSP parallel is standard. 3/4BSP parallel is also available for most parts.
ZF series Air spring
BLIND NUT: M8 x 15 (two or four per each plate depending on part size). Used for mounting the part. MOUNTING PLATE
The plates must be strong enough and backed by structural members to prevent bowing (of the forces or loadsinvolved. AIR INLET: 1/4BSP parallel is standard. 3/4BSP parallel is also available for most parts.
CY series Air spring
BLIND NUT: M8 x 15 (two or four per each plate depending on part size). Used for mounting the part.
AIR INLET: 1/4BSPparallel is standard. 3/4BSP parallel is also available for most parts.
nbsp;
We are specialized in providing various air bellow,if you are interested in any of our air bellow series,please feel free to contact us.
