Listing ID#10061837
ModelY20LY
CategoryOther Farm Machines
Quick answer

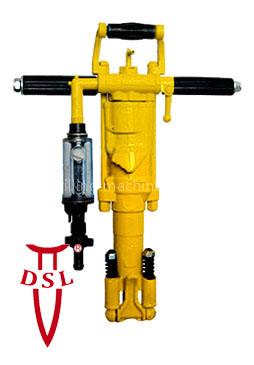

Air Leg Rock Drill-Y20LY is a Other Farm Machines product. Key specs — Origin: China (Mainland).
Product Description
| Air Leg Rock Drill-Y20LY | |
| Specification | 　 |
| Weight | ≈18kg |
| Length | ≈609mm |
| Cylinder dia. | 60mm |
| Piston stroke | 50mm |
| Air pressure | 0.4Mpa |
| Impact frequency | ≥30Hz |
| Air pipe inner dia | 16 or or19mm |
| Water pipe inner dia | 8mm |
| Air consumption | ≤25 L/S |
| Shank dimension | 22×108mm±1mm |
| Bit dimension | 34- 40mm |
| FT100type air leg | 　 |
| Length | 1312mm |
| Piston stroke | 810mm |
| Cylinder dia | 52mm |
| Weight | ≈11kg |
